| Part Number | S333 |
|---|
| Manufacturer | NKK Switches |
|---|

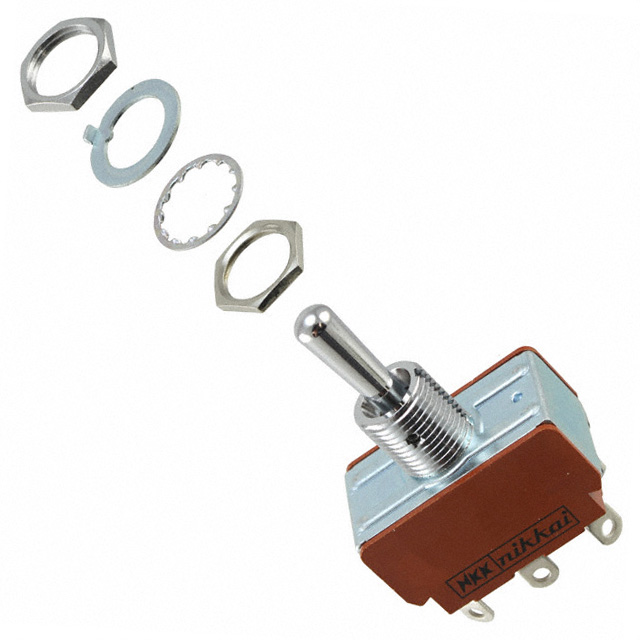

| Description | SWITCH TOGGLE DPDT 25A 125V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | S300 |
|---|
| Family | Toggle Switches |
|---|
| Product Training Modules |
Switch Basics
Value Added and Custom Switch Capabilities
|
|---|
| Featured Product |
S300 and S400 Series Toggle Switches
|
|---|
| PCN Design/Specification |
Multiple Devices Labels 01/Dec/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Circuit | DPDT |
|---|
| Switch Function | On-Off-On |
|---|
| Current Rating | 25A (AC/DC) |
|---|
| Voltage Rating - AC | 125V |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Standard Round |
|---|
| Actuator Length | 17.50mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Panel Mount |
|---|
| Termination Style | Solder Lug |
|---|
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
|---|
| Bushing Thread | M12 x 1 |
|---|
| Ingress Protection | - |
|---|
| Features | - |
|---|
| Actuator Material | Brass, Chrome Plated |
|---|
| Electrical Life | 25,000 Cycles |
|---|
| Operating Temperature | -10°C ~ 70°C |
|---|
| Online Catalog | S300 Series |
|---|
| Associated Product | 360-1606-ND - BOOT SWITCH TOGGLE FULL BLK360-1001-ND - ON-OFF PLATE FOR 12MM BUSHING360-1605-ND - BOOT SWITCH TOGGLE HALF360-2981-ND - BOOT SILICON NUT WASHER BLACK360-1002-ND - ON-OFF PLATE FOR 12MM BUSHING360-1003-ND - ON-OFF PLATE FOR 12MM BUSHING360-1708-ND - BOOT SWITCH TOGGLE FULL YEL360-1706- |
|---|
| Other Names | 360-1193360-1193-ND360-1909S333-RO |
|---|
