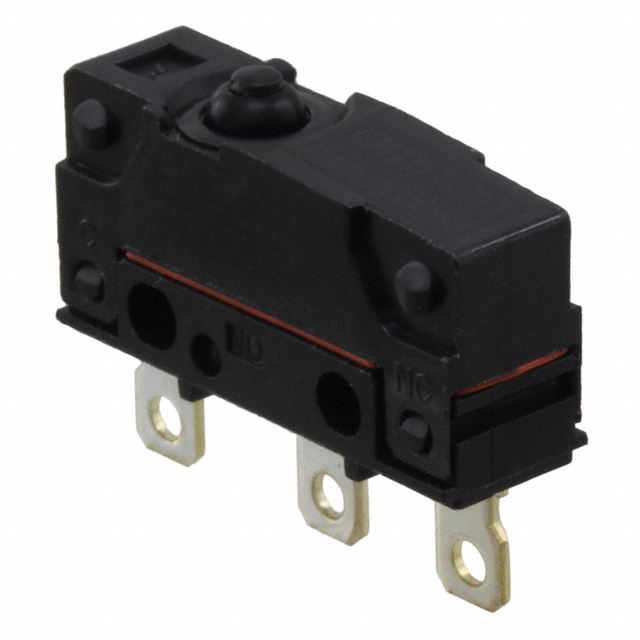

| Part Number | D2SW-P01H |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | SW 0.1A SPDT SEALED SOLDER 125V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | D2SW-P |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Product Training Modules |
Snap Switches
|
|---|
| Standard Package | 500 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 100mA (AC/DC) |
|---|
| Voltage Rating - AC | 125V |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Round (Pin Plunger) |
|---|
| Mounting Type | Chassis Mount |
|---|
| Termination Style | Solder Lug |
|---|
| Ingress Protection | IP67 - Dust Tight, Waterproof |
|---|
| Features | - |
|---|
| Operating Force, Torque | 183gf |
|---|
| Release Force | 20gf |
|---|
| Pretravel | 0.024" (0.6mm) |
|---|
| Differential Travel | 0.006" (0.15mm) |
|---|
| Overtravel | 0.015" (0.4mm) |
|---|
| Operating Position | 0.330" (8.4mm) |
|---|
| Mechanical Life | 1,000,000 Cycles |
|---|
| Electrical Life | 200,000 Cycles |
|---|
| Operating Temperature | -20°C ~ 70°C |
|---|
| Online Catalog | D2SW-P Series |
|---|
| Other Names | D2SWP01H |
|---|
