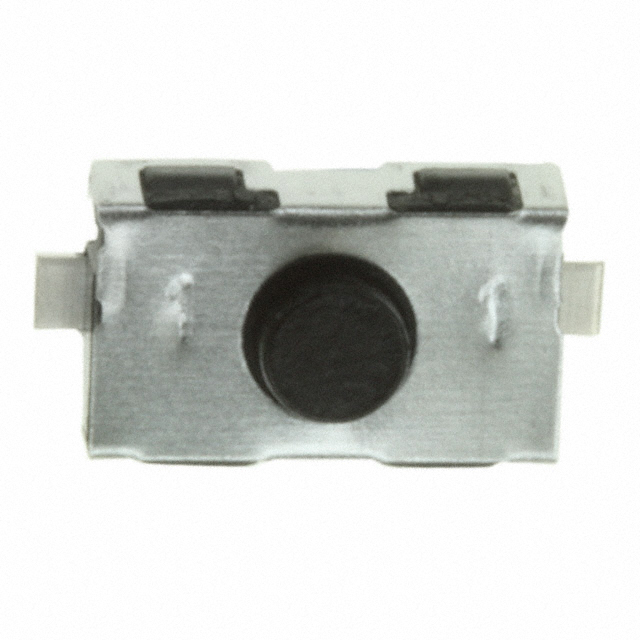

| Part Number | KSR211GLFS |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 32V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | KSR |
|---|
| Family | Tactile Switches |
|---|
| Product Training Modules |
Sealed Switch – Part 1
Sealed Switch – Part 2
Sealed Switch – Part 3
Sealed Switch – Part 4
Introduction to Electromechanical Switches
|
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.05A @ 32VDC |
|---|
| Actuator Type | Standard |
|---|
| Mounting Type | Surface Mount |
|---|
| Actuator Height off PCB, from Pins | 2.50mm |
|---|
| Actuator Orientation | Top Actuated |
|---|
| Termination Style | Gull Wing |
|---|
| Outline | 6.00mm x 3.80mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 180gf |
|---|
| Ingress Protection | IP50 - Dust Protected |
|---|
| Features | - |
|---|
| Actuator Material | Rubber |
|---|
| Switch Travel | 0.25mm |
|---|
| Mechanical Life | 100,000 Cycles |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | KSR Series |
|---|
| Other Names | 401-1702-2KSR211G LFSY35A21110FP LFS |
|---|
