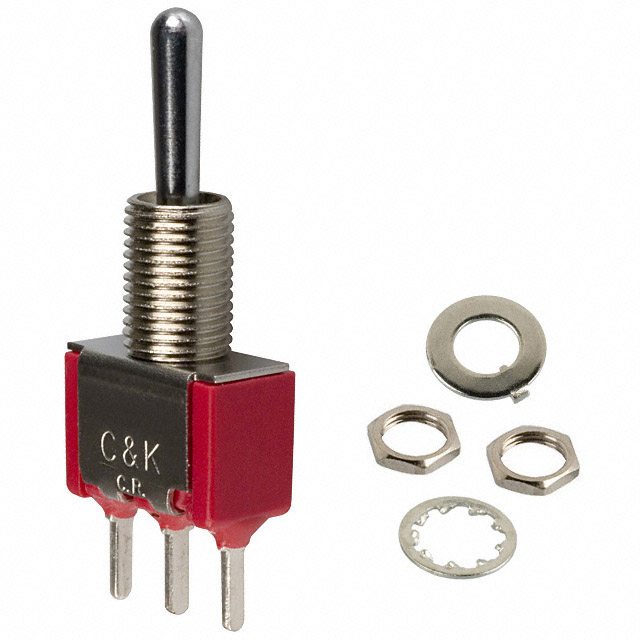

| Part Number | 7103SYCQE |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH TOGGLE SPDT 5A 120V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | 7000 |
|---|
| Family | Toggle Switches |
|---|
| Product Training Modules |
Introduction to Electromechanical Switches
|
|---|
| 3D Model |
710xSYCBE, U11SYCQE.stp
710xSYCBE, U11SYCQE.pdf
|
|---|
| PCN Assembly/Origin |
Series Transfer 26/Nov/2012
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Off-On |
|---|
| Current Rating | 5A (AC/DC) |
|---|
| Voltage Rating - AC | 120V |
|---|
| Voltage Rating - DC | 28V |
|---|
| Actuator Type | Standard Round |
|---|
| Actuator Length | 10.67mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Panel Mount |
|---|
| Termination Style | PC Pin |
|---|
| Panel Cutout Dimensions | Circular - 6.35mm Dia |
|---|
| Bushing Thread | 1/4-40 |
|---|
| Ingress Protection | - |
|---|
| Features | Epoxy Sealed Terminals |
|---|
| Actuator Material | Brass, Chrome Plated |
|---|
| Electrical Life | 40,000 Cycles |
|---|
| Operating Temperature | -30°C ~ 85°C |
|---|
| Online Catalog | 7000 Series |
|---|
| Associated Product | CKN1185-ND - HDWR MTG NUT .062" FOR 7000 SERCKN1817-ND - HDWR SW LOCKING RING 1/4"BUSHINGCKN1201-ND - HDWR NUT DRESS .25" .118"H NKLCKN1754-ND - HDWR DRESS NUT 1/4"-40 .118"HCKN1392-ND - HDWR DRESS NUT 1/4-40 .090" NKLCKN10357-ND - BOOT FULL TOGGLE 1/4-40 BLACK335-1036-ND - BOOT FULL TOGGLE 1/4-40 GRAYCKN1753-ND - HDWR LOCKWASHER 1/4"-40 BUSHINGCKN10080-ND - CAP TOGGLE BAT BLACKCKN1755-ND - HDWR NUT KNURL 1/4"-40 .080" NKLCKN1204-ND - CAP TOGGLE BAT BLACKCKN1205-ND - CAP TOGGLE BAT REDCKN1203-ND - CAP TOGGLE BAT WHITECKN1756-ND - HDWR NUT KNURL 1/4"-40 .062"NKLCKN10316-ND - HDWR MTG NUT BLACK FOR 7000 SERCKN10598-ND - CAP TOGGLE BAT WHITECKN10599-ND - CAP TOGGLE BAT REDCKN1393-ND - HDWR DRESS NUT1/4-40 SATIN CHROMCKN10317-ND - HDWR LOCKWASHER 1/4"-40 BLACK |
|---|
| Other Names | *7103SYCQECKN1005 |
|---|
