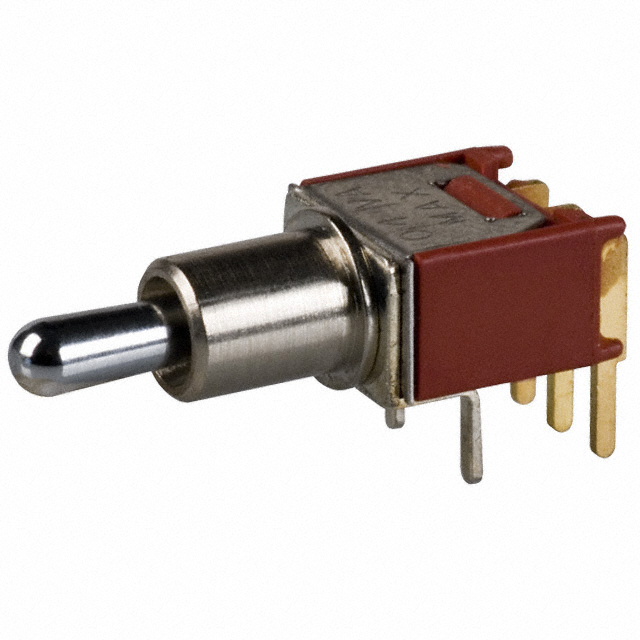

| Part Number | T101MH9ABE |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH TOGGLE SPDT 0.4VA 20V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | T |
|---|
| Family | Toggle Switches |
|---|
| Product Training Modules |
Introduction to Electromechanical Switches
|
|---|
| 3D Model |
T10xMH9ABE.stp
T10xMH9ABE.pdf
|
|---|
| PCN Design/Specification |
TP, T, TS Material 01/Jul/2009
|
|---|
| PCN Assembly/Origin |
Series Transfer 26/Nov/2012
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-On |
|---|
| Current Rating | 0.4VA (AC/DC) |
|---|
| Voltage Rating - AC | 20V |
|---|
| Voltage Rating - DC | 20V |
|---|
| Actuator Type | Standard Round |
|---|
| Actuator Length | 5.33mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination Style | PC Pin |
|---|
| Panel Cutout Dimensions | - |
|---|
| Bushing Thread | Unthreaded |
|---|
| Ingress Protection | - |
|---|
| Features | Epoxy Sealed Terminals |
|---|
| Actuator Material | Brass, Chrome Plated |
|---|
| Electrical Life | 60,000 Cycles |
|---|
| Operating Temperature | -30°C ~ 85°C |
|---|
| Online Catalog | T Series |
|---|
| Other Names | *T101MH9ABECKN1067 |
|---|
