| Part Number | B3F-4055 |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | B3F |
|---|
| Family | Tactile Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Product Training Modules |
Medical Solutions
|
|---|
| PCN Design/Specification |
B3F (12x12) Plunger June/2010
|
|---|
| Standard Package | 500 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
|---|
| Actuator Type | Plunger for Cap |
|---|
| Mounting Type | Through Hole |
|---|
| Actuator Height off PCB, from Pins | 7.30mm |
|---|
| Actuator Orientation | Top Actuated |
|---|
| Termination Style | PC Pin |
|---|

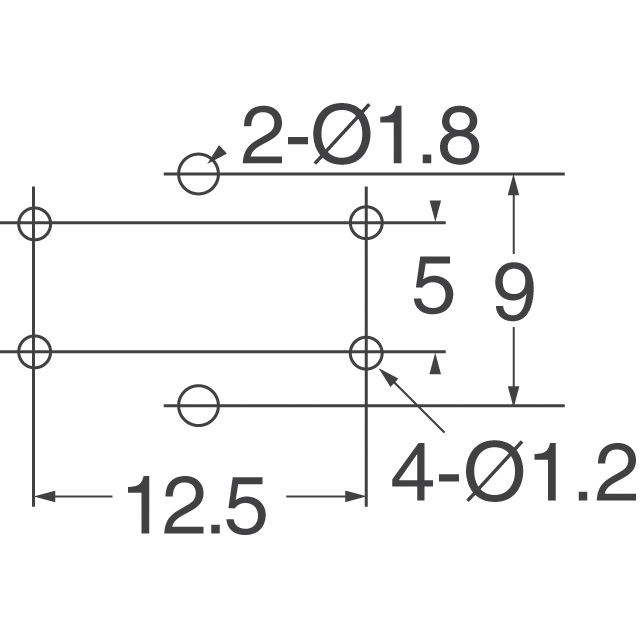

| Outline | 12.00mm x 12.00mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 260gf |
|---|
| Ingress Protection | - |
|---|
| Features | - |
|---|
| Actuator Material | - |
|---|
| Switch Travel | 0.30mm |
|---|
| Mechanical Life | 1,000,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 70°C |
|---|
| Online Catalog | B3F Series |
|---|
| Associated Product | SW254-ND - CAP TACTILE SQUARE BLUESW455-ND - CAP TACTILE SQUARE BLACKSW847-ND - CAP TACTILE ROUND BLACKSW452-ND - CAP TACTILE SQUARE LIGHT GRAYSW259-ND - CAP TACTILE SQUARE WHITESW255-ND - CAP TACTILE SQUARE WHITESW453-ND - CAP TACTILE SQUARE BLACKSW454-ND - CAP TACTILE SQUARE LIGHT GRAYSW258-ND - CAP TACTILE SQUARE BLUESW257-ND - CAP TACTILE SQUARE YELLOWSW957-ND - CAP TACTILE SQUARE GREENSW1138-ND - CAP TACTILE ROUND LIGHT GRAYSW848-ND - CAP TACTILE ROUND YELLOWSW959-ND - CAP TACTILE ROUND ORANGESW253-ND - CAP TACTILE SQUARE YELLOWSW256-ND - CAP TACTILE SQUARE REDSW956-ND - CAP TACTILE SQUARE ORANGESW846-ND - CAP TACTILE SQUARE GREENSW954-ND - CAP TACTILE SQUARE ORANGESW260-ND - CAP TACTILE SQUARE REDSW958-ND - CAP TACTILE SQUARE LIGHT GREENSW955-ND - CAP TACTILE SQUARE LIGHT GREEN |
|---|
| Other Names | B3F-4055 BY OMZB3F4055B3F4055BYOMZB3FZ0041MSW414 |
|---|
