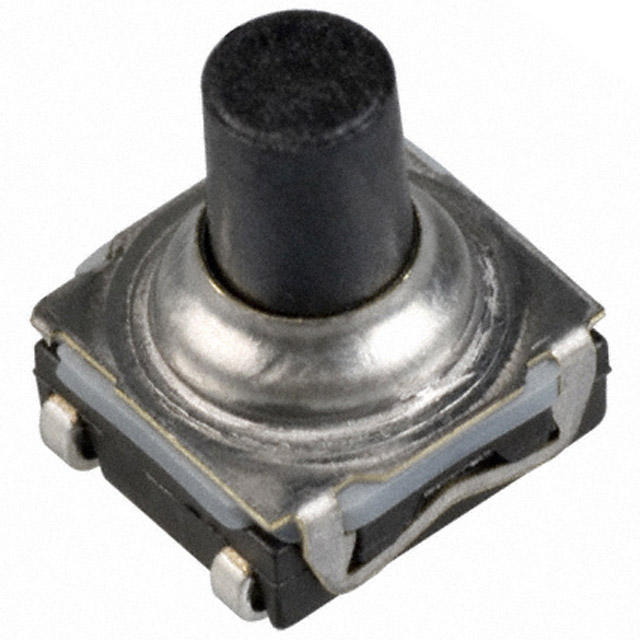

| Part Number | KSC641JLFS |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 32V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | KSC |
|---|
| Family | Tactile Switches |
|---|
| Product Training Modules |
Sealed Switch – Part 1
Sealed Switch – Part 2
Sealed Switch – Part 3
Sealed Switch – Part 4
Introduction to Electromechanical Switches
|
|---|
| PCN Design/Specification |
KSCx Improvement 14/Nov/2007
KSC6 Series 21/Jun/2013
KSC Series Marking 19/Sep/2014
|
|---|
| Standard Package | 750 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.05A @ 32VDC |
|---|
| Actuator Type | Standard |
|---|
| Mounting Type | Surface Mount |
|---|
| Actuator Height off PCB, from Pins | 7.70mm |
|---|
| Actuator Orientation | Top Actuated |
|---|
| Termination Style | J Lead |
|---|
| Outline | 6.20mm x 6.20mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 340gf |
|---|
| Ingress Protection | IP67 - Dust Tight, Waterproof |
|---|
| Features | - |
|---|
| Actuator Material | - |
|---|
| Switch Travel | 0.40mm |
|---|
| Mechanical Life | 300,000 Cycles |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | KSC Series |
|---|
| Other Names | 401-1788-2KSC641J LFSY31A41051FP LFS |
|---|
