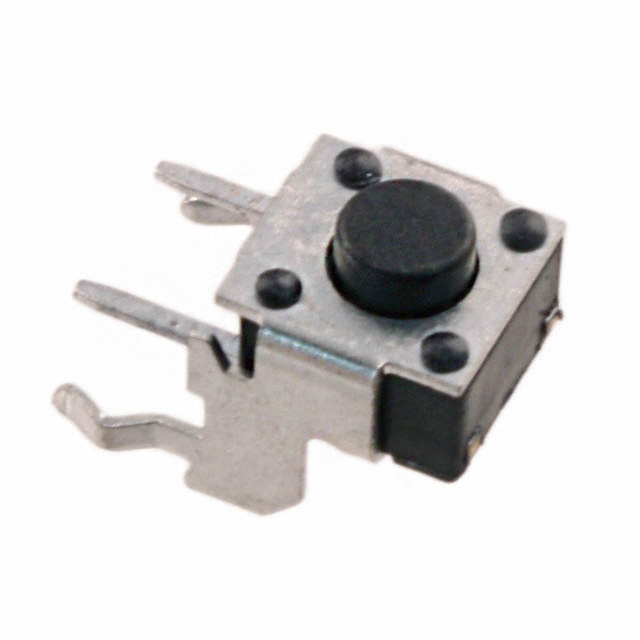

| Part Number | 1825027-5 |
|---|
| Manufacturer | TE Connectivity Alcoswitch Switches |
|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | FSMRAJ |
|---|
| Family | Tactile Switches |
|---|
| Featured Product |
TE Connectivity Alcoswitch Switches
Tactile Switches
|
|---|
| 3D Model |
1825027-5.pdf
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
|---|
| Actuator Type | Standard |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Actuator Height off PCB, from Pins | 3.86mm |
|---|
| Actuator Orientation | Side Actuated |
|---|
| Termination Style | PC Pin |
|---|
| Outline | 7.10mm x 7.00mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 160gf |
|---|
| Ingress Protection | - |
|---|
| Features | - |
|---|
| Actuator Material | Polybutylene Terephthalate (PBT) |
|---|
| Switch Travel | 0.25mm |
|---|
| Mechanical Life | 100,000 Cycles |
|---|
| Operating Temperature | -35°C ~ 85°C |
|---|
| Online Catalog | FSM100 ~ 104 Series |
|---|
| Other Names | 450-16628-1437565-9FSMRA2JHFSMRA2JH-ND |
|---|
