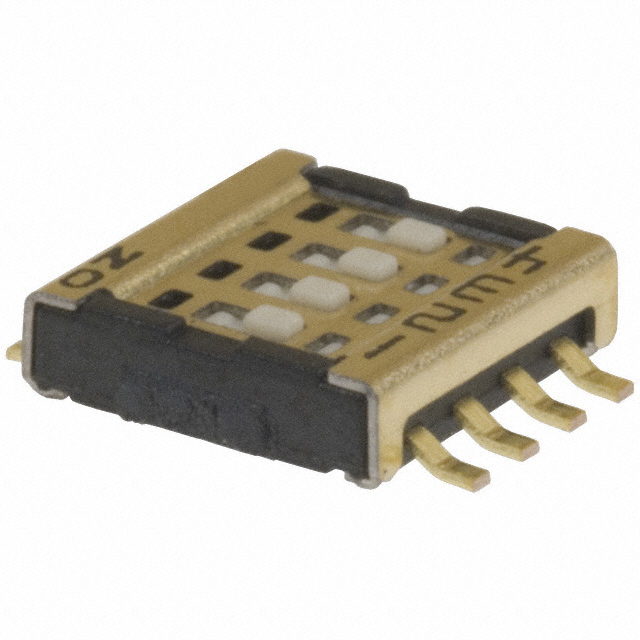

| Part Number | CVS-04TB |
|---|
| Manufacturer | Copal Electronics Inc. |
|---|
| Description | SWITCH DIP SLIDE 4-POS 1MM 6V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | CVS |
|---|
| Family | DIP Switches |
|---|
| Featured Product |
CVS Series – 1 MM Pitch DIP Slide Switches
|
|---|
| 3D Model |
CVS-04TB
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Circuit | SPST |
|---|
| Number of Positions | 4 |
|---|
| Current Rating | 100mA |
|---|
| Voltage Rating | 6VDC |
|---|
| Actuator Type | Slide (Standard) |
|---|
| Actuator Level | Raised |
|---|
| Contact Material | Stainless Steel |
|---|
| Contact Finish | Gold |
|---|
| Height Above Board | 0.057" (1.45mm) |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Pitch | 0.039" (1.00mm) |
|---|
| Washable | No |
|---|
| Features | - |
|---|
| Body Material | Polyphenylene Sulfide (PPS) |
|---|
| Length | 0.197" (5.00mm) |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mechanical Life | - |
|---|
| Electrical Life | 1,000 Cycles |
|---|
| Online Catalog | CVS Series |
|---|
| Other Names | 563-1041-6 |
|---|
