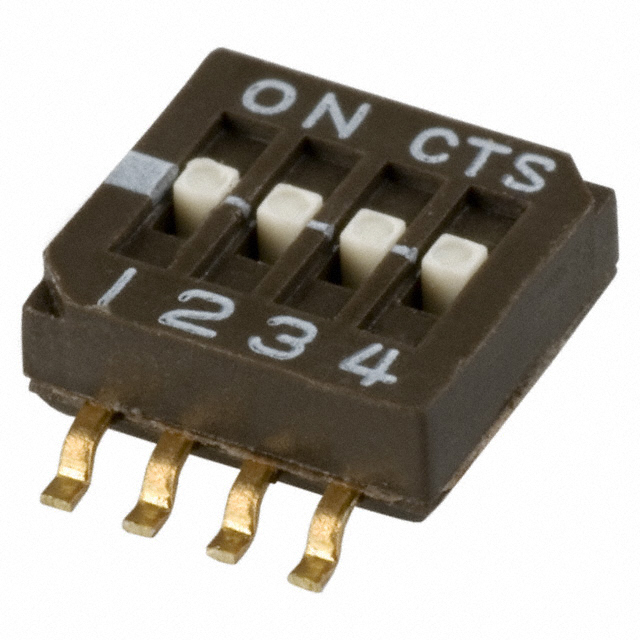

| Part Number | 218-4LPST |
|---|
| Manufacturer | CTS Electrocomponents |
|---|
| Description | SWITCH DIP HALF PITCH 4POS 50V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | 218 |
|---|
| Family | DIP Switches |
|---|
| Product Training Modules |
DIP Switch
|
|---|
| 3D Model |
218 Series 4 Pole.stp
|
|---|
| Standard Package | 75 |
|---|
| Packaging | Tube |
|---|
| Circuit | SPST |
|---|
| Number of Positions | 4 |
|---|
| Current Rating | 25mA |
|---|
| Voltage Rating | 24VDC |
|---|
| Actuator Type | Slide (Standard) |
|---|
| Actuator Level | Flush, Recessed |
|---|
| Contact Material | Beryllium Copper |
|---|
| Contact Finish | Gold |
|---|
| Height Above Board | 0.104" (2.65mm) |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Pitch | 0.050" (1.27mm), Half |
|---|
| Washable | Yes |
|---|
| Features | Epoxy Sealed Terminals, Tape Seal |
|---|
| Body Material | - |
|---|
| Length | 0.246" (6.25mm) |
|---|
| Operating Temperature | -55°C ~ 85°C |
|---|
| Mechanical Life | - |
|---|
| Electrical Life | 1,000 Cycles |
|---|
| Online Catalog | 218 Series |
|---|
| Other Names | 2184LPSTCT2184LPST |
|---|
