| Part Number | ATE1E-2M3-10-Z |
|---|
| Manufacturer | Copal Electronics Inc. |
|---|
| Description | SWITCH TOGGLE SPDT 50MA 48V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | ATE |
|---|
| Family | Toggle Switches |
|---|
| Product Training Modules |
Toggle Switch
|
|---|
| Featured Product |
Copal - Toggle Switches
|
|---|
| 3D Model |
ATE1E-2M3-10-Z
|
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Off-On |
|---|
| Current Rating | 50mA (AC/DC) |
|---|
| Voltage Rating - AC | 48V |
|---|
| Voltage Rating - DC | 48V |
|---|

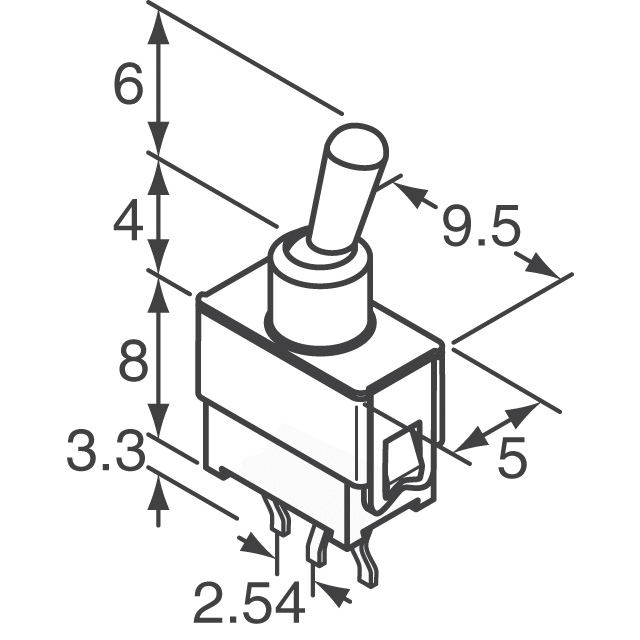

| Actuator Type | Standard Round |
|---|
| Actuator Length | 6.00mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Panel Cutout Dimensions | - |
|---|
| Bushing Thread | Unthreaded |
|---|
| Ingress Protection | - |
|---|
| Features | Washable |
|---|
| Actuator Material | - |
|---|
| Electrical Life | 50,000 Cycles |
|---|
| Operating Temperature | -20°C ~ 85°C |
|---|
| Online Catalog | ATE Series |
|---|
| Associated Product | 563-1173-ND - BRACKET FOR ATE SERIES563-1166-ND - CAP TOGGLE BAT BLACK563-1167-ND - CAP TOGGLE BAT WHITE563-1168-ND - CAP TOGGLE BAT RED563-1171-ND - CAP TOGGLE BAT GRAY563-1169-ND - CAP TOGGLE BAT YELLOW563-1170-ND - CAP TOGGLE BAT BLUE563-1172-ND - CAP TOGGLE BAT ORANGE |
|---|
| Other Names | 563-1159ATE1E-2M3-10-Z-NDATE1E2M310Z |
|---|
