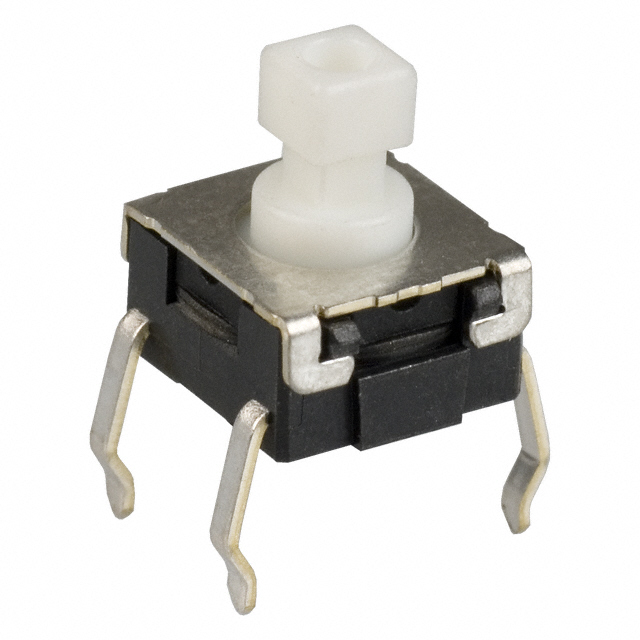

| Part Number | B3W-1050 |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | B3W |
|---|
| Family | Tactile Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Product Training Modules |
Medical Solutions
|
|---|
| Standard Package | 1,500 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
|---|
| Actuator Type | Plunger for Cap |
|---|
| Mounting Type | Through Hole |
|---|
| Actuator Height off PCB, from Pins | 7.30mm |
|---|
| Actuator Orientation | Top Actuated |
|---|
| Termination Style | PC Pin |
|---|
| Outline | 6.50mm x 6.00mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 160gf |
|---|
| Ingress Protection | IP67 - Dust Tight, Waterproof |
|---|
| Features | Sealed - Fully |
|---|
| Actuator Material | - |
|---|
| Switch Travel | 0.25mm |
|---|
| Mechanical Life | 300,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 70°C |
|---|
| Online Catalog | B3W Series |
|---|
| Associated Product | SW450-ND - CAP TACTILE SQUARE LIGHT GRAYSW451-ND - CAP TACTILE SQUARE BLACKSW251-ND - CAP TACTILE SQUARE WHITESW1139-ND - CAP TACTILE ROUND BLACKSW250-ND - CAP TACTILE SQUARE BLUESW845-ND - CAP TACTILE SQUARE ORANGESW252-ND - CAP TACTILE SQUARE REDSW249-ND - CAP TACTILE SQUARE YELLOWSW891-ND - CAP TACTILE SQUARE LIGHT GRAYSW953-ND - CAP TACTILE SQUARE LIGHT GREENSW1450-ND - CAP TACTILE SQUARE GREENB32-2000-ND - CAP TACTILE ROUND LIGHT GRAY |
|---|
| Other Names | B3W-1050 BY OMZB3W-1050BYOMZB3W1050B3W1050BYOMZSW419 |
|---|
