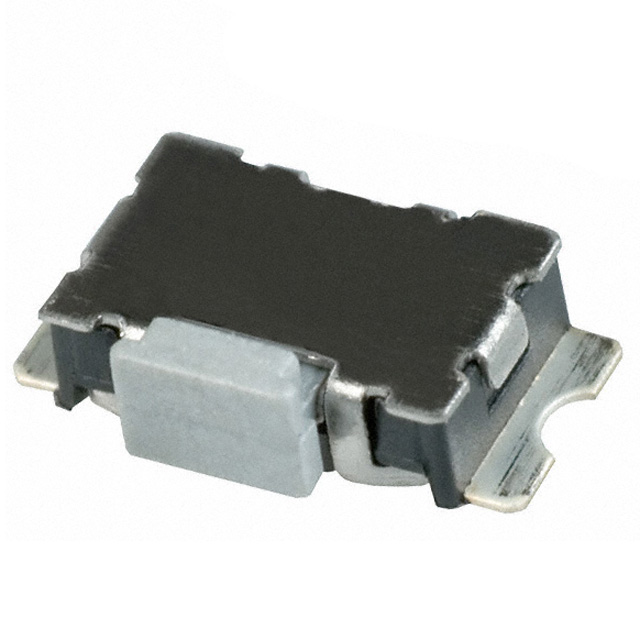

| Part Number | KSS321GLFS |
|---|
| Manufacturer | C&K Components |
|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 50V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | KSS |
|---|
| Family | Tactile Switches |
|---|
| Product Training Modules |
Introduction to Electromechanical Switches
|
|---|
| PCN Design/Specification |
KSS Series Material Change 23/Apr/2015
KSS Series 21/Jul/2015
|
|---|
| PCN Other |
KSS2 Series 10/Apr/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.05A @ 50VDC |
|---|
| Actuator Type | Rectangular Button |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Actuator Height off PCB, from Pins | - |
|---|
| Actuator Orientation | Side Actuated |
|---|
| Termination Style | Gull Wing |
|---|
| Outline | 7.00mm x 3.50mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 200gf |
|---|
| Ingress Protection | IP40 |
|---|
| Features | Tactile Feedback |
|---|
| Actuator Material | - |
|---|
| Switch Travel | 0.30mm |
|---|
| Mechanical Life | 100,000 Cycles |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | KSS Series |
|---|
| Other Names | *KSS321G*KSS321GLFS401-1100-1 |
|---|
