| Part Number | 6600 |
|---|---|
| Manufacturer | Electroswitch |

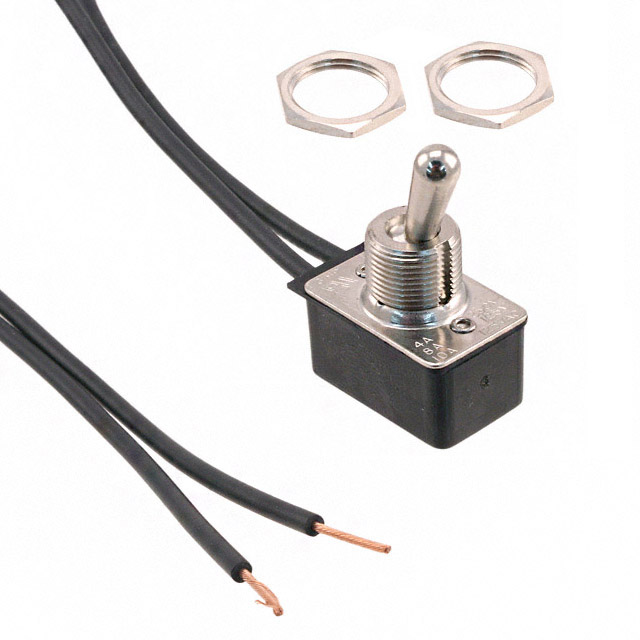

| Description | SWITCH TOGGLE SPST 10A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3,438 |
| Datasheet | 6600 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
6600
-
- USD 3.75
Product Details
| Part Number | 6600 |
|---|---|
| Manufacturer | Electroswitch |
| Description | SWITCH TOGGLE SPST 10A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | 6600 |
| Family | Toggle Switches |
| Standard Package | 1 |
| Packaging | Bulk |
| Circuit | SPST |
| Switch Function | On-Off |
| Current Rating | 10A (AC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | - |
| Actuator Type | Standard Round |
| Actuator Length | 14.27mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Mounting Type | Panel Mount |
| Termination Style | Wire Leads |
| Panel Cutout Dimensions | - |
| Bushing Thread | 15/32-32 |
| Ingress Protection | - |
| Features | - |
| Actuator Material | Brass, Nickel Plated |
| Electrical Life | 10,000 Cycles |
| Operating Temperature | -10°C ~ 65°C |
| Online Catalog | 6600 Series |
| Associated Product | 451-1190-ND - SWITCH ON-OFF PLATE .025"451-1193-ND - SWITCH LOCKWASHER .600 O.D .018"451-1191-ND - SWITCH HI-LO PLATE .025"451-1184-ND - BOOT FULL TOGGLE BLACK 0.64"451-1194-ND - SW LOCKING RING .718 O.D. .04"451-1192-ND - SWITCH HEX NUT .562 O.D. .074"451-1188-ND - BOOT HALF TOGGLE 0.412 BLK451-1185-ND - BOOT FULL TOGGLE GRAY 0.64"451-1189-ND - BOOT HALF TOGGLE 0.412 GRY |
| Other Names | 451-1182 |
