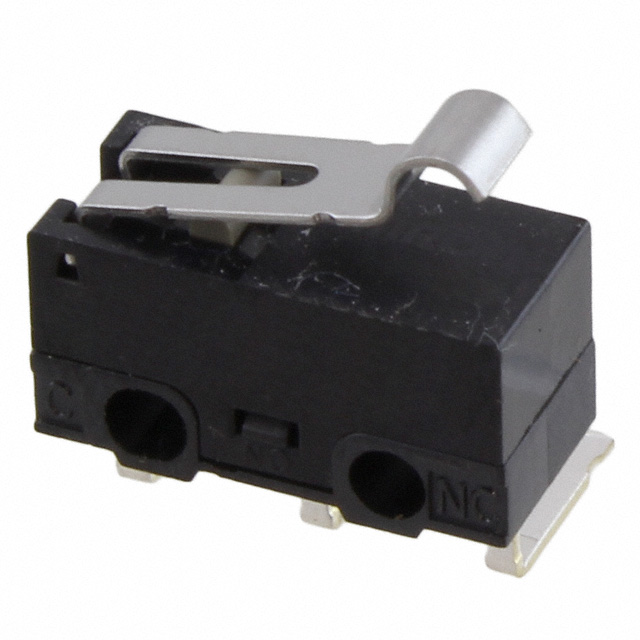

| Part Number | D2F-L3-A |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | SW SPDT 3A 80GF RT ANG PCB 125V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | D2F |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Product Training Modules |
Snap Switches
|
|---|
| Standard Package | 450 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 3A (AC), 2A (DC) |
|---|
| Voltage Rating - AC | 125V |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Lever, Simulated Roller |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination Style | PC Pin |
|---|
| Ingress Protection | IP40 |
|---|
| Features | - |
|---|
| Operating Force, Torque | 80gf |
|---|
| Release Force | 5gf |
|---|
| Pretravel | - |
|---|
| Differential Travel | 0.018" (0.45mm) |
|---|
| Overtravel | 0.020" (0.5mm) |
|---|
| Operating Position | 0.335" (8.5mm) |
|---|
| Mechanical Life | 1,000,000 Cycles |
|---|
| Electrical Life | 30,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 65°C |
|---|
| Online Catalog | D2F Series |
|---|
| Other Names | D2FL3A |
|---|
