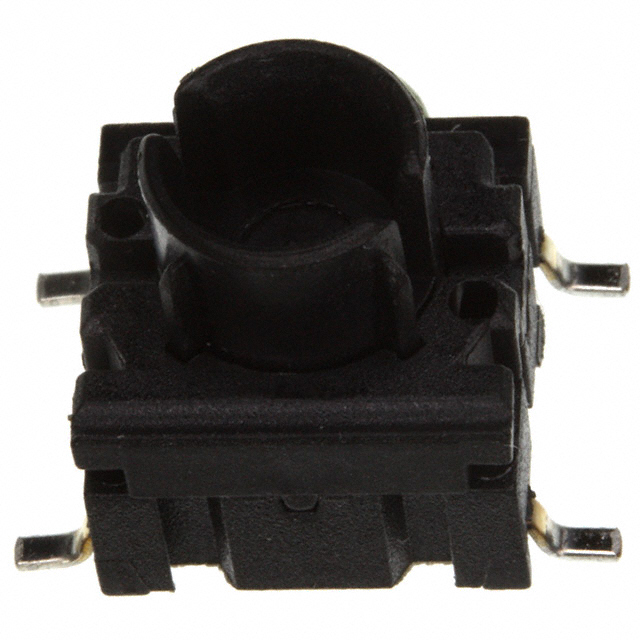

| Part Number | 3FSH9 |
|---|
| Manufacturer | MEC Switches |
|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | Multimec? 3 |
|---|
| Family | Tactile Switches |
|---|
| Product Training Modules |
Switches
|
|---|
| 3D Model |
3FSH9.stp
|
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
|---|
| Actuator Type | Plunger for Cap |
|---|
| Mounting Type | Surface Mount |
|---|
| Actuator Height off PCB, from Pins | 10.40mm |
|---|
| Actuator Orientation | Top Actuated |
|---|
| Termination Style | Gull Wing |
|---|
| Outline | 10.10mm x 10.10mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 300gf |
|---|
| Ingress Protection | IP67 - Dust Tight, Waterproof |
|---|
| Features | Sealed - Flux Protection |
|---|
| Actuator Material | Polyphenylene Sulfide (PPS) |
|---|
| Switch Travel | 1.00mm |
|---|
| Mechanical Life | 10,000,000 Cycles |
|---|
| Operating Temperature | -40°C ~ 160°C |
|---|
| Online Catalog | Multimec? Series |
|---|
| Other Names | 679-2226 |
|---|
