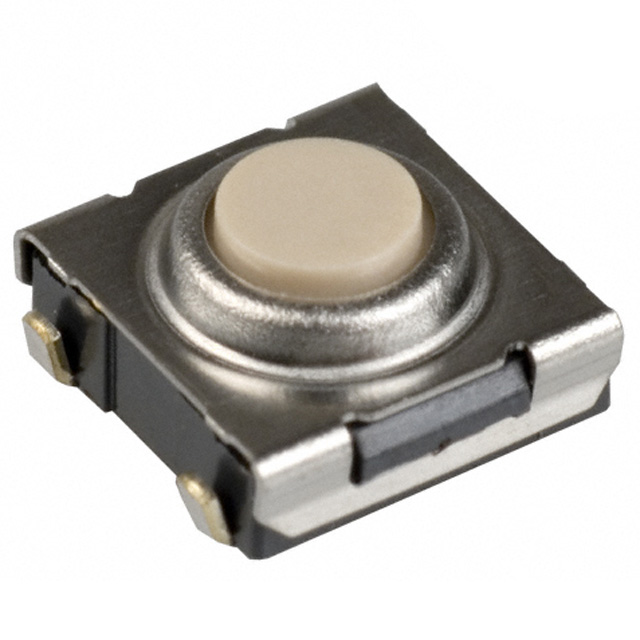

| Part Number | B3SN-3012P |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | B3SN |
|---|
| Family | Tactile Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Product Training Modules |
Medical Solutions
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Circuit | SPST-NO |
|---|
| Switch Function | Off-Mom |
|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
|---|
| Actuator Type | Standard |
|---|
| Mounting Type | Surface Mount |
|---|
| Actuator Height off PCB, from Pins | 3.10mm |
|---|
| Actuator Orientation | Top Actuated |
|---|
| Termination Style | SMD (SMT) Tab |
|---|
| Outline | 6.50mm x 6.00mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Illumination Type, Color | - |
|---|
| Operating Force | 160gf |
|---|
| Ingress Protection | IP67 - Dust Tight, Waterproof |
|---|
| Features | Sealed - Fully |
|---|
| Actuator Material | - |
|---|
| Switch Travel | 0.25mm |
|---|
| Mechanical Life | 100,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 70°C |
|---|
| Online Catalog | B3SN Series |
|---|
| Other Names | SW261CT |
|---|
