| Part Number | D2F-L |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Description | LEVER SW PCB SPDT 3A 80GF 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22,462 51,000 - Factory Stock |
| Datasheet | D2F-L |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
D2F-L
-
- USD 2.25
Product Details
| Part Number | D2F-L |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Description | LEVER SW PCB SPDT 3A 80GF 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Switches |
| Series | D2F |
| Family | Snap Action, Limit Switches |
| Other Related Documents | How to Read Date Codes |
| Product Training Modules | Snap Switches Medical Solutions |
| Standard Package | 1,000 |
| Packaging | Bulk |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating | 3A (AC), 2A (DC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |

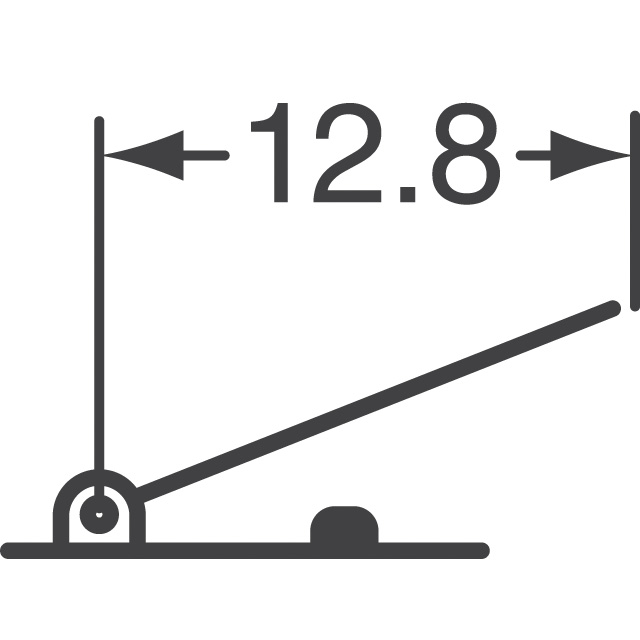

| Actuator Type | Lever, Straight |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Ingress Protection | IP40 |
| Features | - |
| Operating Force, Torque | 80gf |
| Release Force | 5gf |
| Pretravel | - |
| Differential Travel | 0.020" (0.5mm) |
| Overtravel | 0.022" (0.55mm) |
| Operating Position | 0.268" (6.8mm) |
| Mechanical Life | 1,000,000 Cycles |
| Electrical Life | 30,000 Cycles |
| Operating Temperature | -25°C ~ 65°C |
| Online Catalog | D2F Series |
| Other Names | D2FLSW152 |
