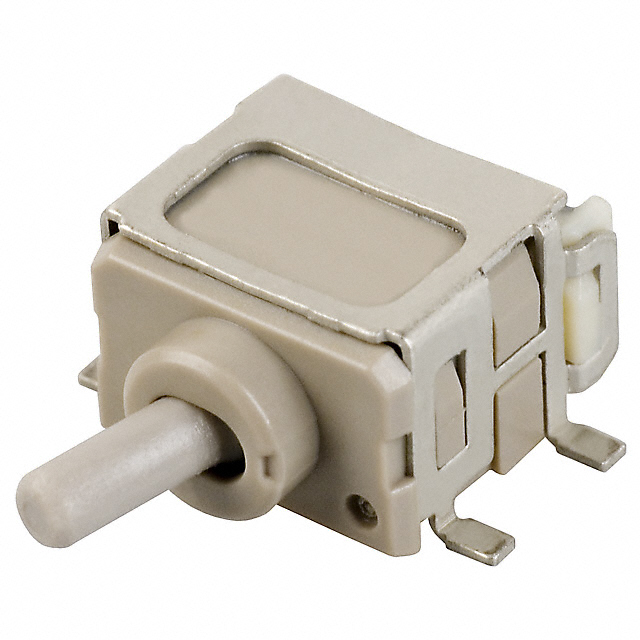

| Part Number | G3T12AH-R |
|---|
| Manufacturer | NKK Switches |
|---|
| Description | SWITCH TOGGLE SPDT 0.4VA 28V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | G3T |
|---|
| Family | Toggle Switches |
|---|
| Product Training Modules |
Switch Basics
3D CAD Models
|
|---|
| Featured Product |
G3T and G3B Series Ultra-Miniature Surface Mount Toggle and Pushbutton Switches
|
|---|
| 3D Model |
G3T12AH
|
|---|
| Standard Package | 500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-On |
|---|
| Current Rating | 0.4VA (AC/DC) |
|---|
| Voltage Rating - AC | 28V |
|---|
| Voltage Rating - DC | 28V |
|---|
| Actuator Type | Standard Round |
|---|
| Actuator Length | 3.81mm |
|---|
| Illumination | Non-Illuminated |
|---|
| Illumination Type, Color | - |
|---|
| Illumination Voltage (Nominal) | - |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Termination Style | Gull Wing |
|---|
| Panel Cutout Dimensions | - |
|---|
| Bushing Thread | Unthreaded |
|---|
| Ingress Protection | - |
|---|
| Features | Process Sealed |
|---|
| Actuator Material | Polyphenylene Sulfide (PPS) |
|---|
| Electrical Life | 50,000 Cycles |
|---|
| Operating Temperature | -30°C ~ 85°C |
|---|
| Online Catalog | G3T Series |
|---|
| Other Names | 360-1024-2360-1024-2-ND360-1773-2G3T12AH-R-ROG3T12AHR |
|---|
