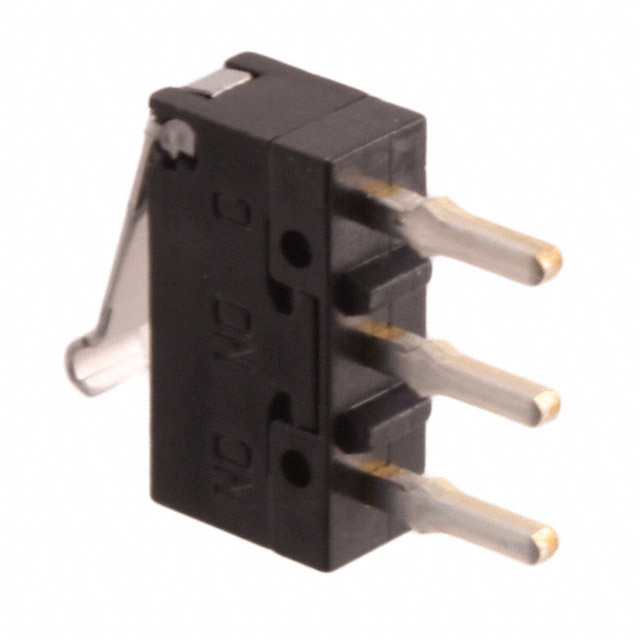

| Part Number | AV444461 |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | SWITCH SNAP MINI ROLLER STR 30V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | AV4 |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Standard Package | 100 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 100mA (DC) |
|---|
| Voltage Rating - AC | - |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Lever, Simulated Roller |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Ingress Protection | - |
|---|
| Features | - |
|---|
| Operating Force, Torque | 29gf |
|---|
| Release Force | - |
|---|
| Pretravel | 0.087" (2.2mm) |
|---|
| Differential Travel | 0.027" (0.7mm) |
|---|
| Overtravel | 0.011" (0.3mm) |
|---|
| Operating Position | 0.240" (6.1mm) |
|---|
| Mechanical Life | 300,000 Cycles |
|---|
| Electrical Life | 200,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 80°C |
|---|
| Online Catalog | AV4 Series |
|---|
| Other Names | 255-3403AV444461-ND |
|---|
