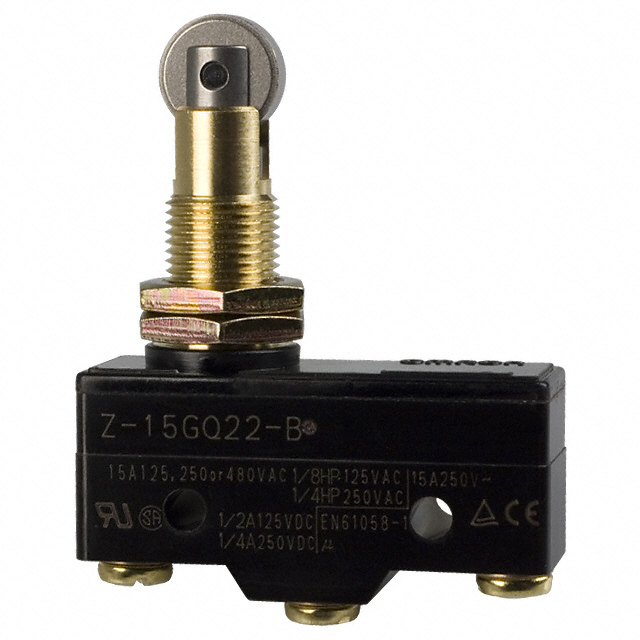

| Part Number | Z-15GQ22-B |
|---|
| Manufacturer | Omron Automation and Safety |
|---|
| Description | SW 15A PANEL MOUNT ROLLER 125V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Switches |
|---|
| Series | Z |
|---|
| Family | Snap Action, Limit Switches |
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Circuit | SPDT |
|---|
| Switch Function | On-Mom |
|---|
| Current Rating | 15A (AC), 6A (DC) |
|---|
| Voltage Rating - AC | 125V |
|---|
| Voltage Rating - DC | 30V |
|---|
| Actuator Type | Roller Plunger |
|---|
| Mounting Type | Panel Mount |
|---|
| Termination Style | Screw Terminal |
|---|
| Ingress Protection | IP00 |
|---|
| Features | - |
|---|
| Operating Force, Torque | 250 ~ 350gf |
|---|
| Release Force | 114gf |
|---|
| Pretravel | 0.015" (0.4mm) |
|---|
| Differential Travel | 0.002" (0.05mm) |
|---|
| Overtravel | 0.141" (3.6mm) |
|---|
| Operating Position | 1.313" (33.4mm) |
|---|
| Mechanical Life | 10,000,000 Cycles |
|---|
| Electrical Life | 500,000 Cycles |
|---|
| Operating Temperature | -25°C ~ 80°C |
|---|
| Online Catalog | Z Series |
|---|
| Associated Product | SW235-ND - SWITCH TRM COV PHENOLIC A/Z SERSW236-ND - TERMINAL COVER FOR A/Z SWITCH |
|---|
| Other Names | SW1074SW1074-NDSW194Z-15GQ22-B7-KZ-15GQ22-B7-K-NDZ15GQ22-BZ15GQ22-B7-KZ15GQ22BZ15GQ22B7K |
|---|
