| Part Number | TBPDANN060PGUCV |
|---|---|
| Manufacturer | Honeywell Sensing and Control |

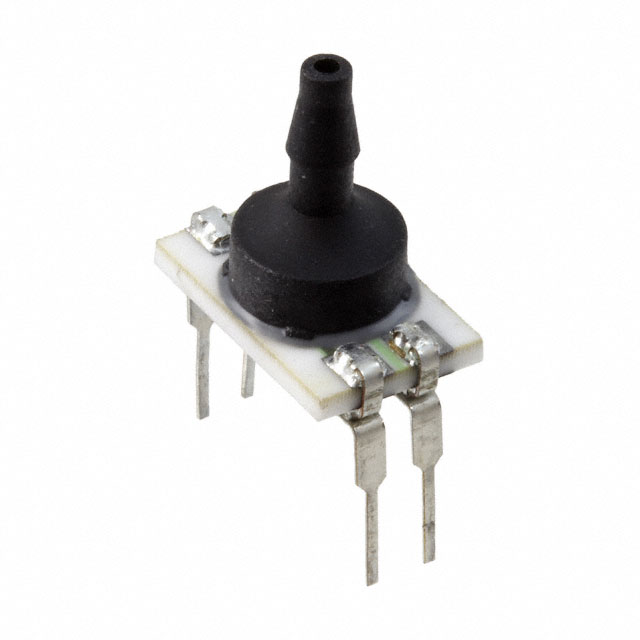

| Description | BASIC MODEL PRESSURE SENSOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Datasheet | TBPDANN060PGUCV |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
TBPDANN060PGUCV
-
- USD 14.60
Product Details
| Part Number | TBPDANN060PGUCV |
|---|---|
| Manufacturer | Honeywell Sensing and Control |
| Description | BASIC MODEL PRESSURE SENSOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Sensors, Transducers |
| Series | TBP |
| Family | Pressure Sensors, Transducers |
| Standard Package | 30 |
| Pressure Type | Vented Gauge |
| Operating Pressure | 60 PSI (413.69 kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 30 mV (5V) |
| Accuracy | ±0.15% |
| Voltage - Supply | 1.5 V ~ 12 V |
| Port Size | Male - 0.08" (2.54mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 145 PSI (999.74 kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 4-DIP (0.453", 11.50mm), Top Port |
| Supplier Device Package | 4-DIP |
