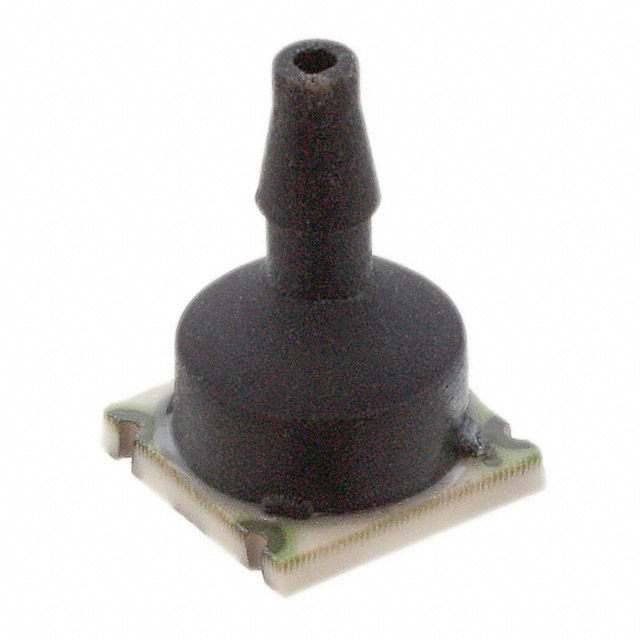

| Part Number | NBPLANN100PGUNV |
|---|
| Manufacturer | Honeywell Sensing and Control |
|---|
| Description | SENSOR 100 PSIG UNAMPLIFIED SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Sensors, Transducers |
|---|
| Series | NBP |
|---|
| Family | Pressure Sensors, Transducers |
|---|
| Product Training Modules |
Basic Board Mount Pressure Sensors, NBP Series Overview
|
|---|
| Featured Product |
NBP Series
|
|---|
| Standard Package | 30 |
|---|
| Pressure Type | Vented Gauge |
|---|
| Operating Pressure | 100 PSI (689.48 kPa) |
|---|
| Output Type | Wheatstone Bridge |
|---|
| Output | 0 mV ~ 86 mV (5V) |
|---|
| Accuracy | ±0.25% |
|---|
| Voltage - Supply | 1.8 V ~ 12 V |
|---|
| Port Size | Male - 0.11" (2.74mm) Tube |
|---|
| Port Style | Barbed |
|---|
| Features | - |
|---|
| Termination Style | Surface Mount |
|---|
| Maximum Pressure | 240 PSI (1654.74 kPa) |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Package / Case | 6-SMD, No Lead, Top Port |
|---|
| Supplier Device Package | - |
|---|
| Online Catalog | NBP Series |
|---|
| Other Names | 480-5537 |
|---|
