| Part Number | GP1S096HCZ0F |
|---|
| Manufacturer | Sharp Microelectronics |
|---|

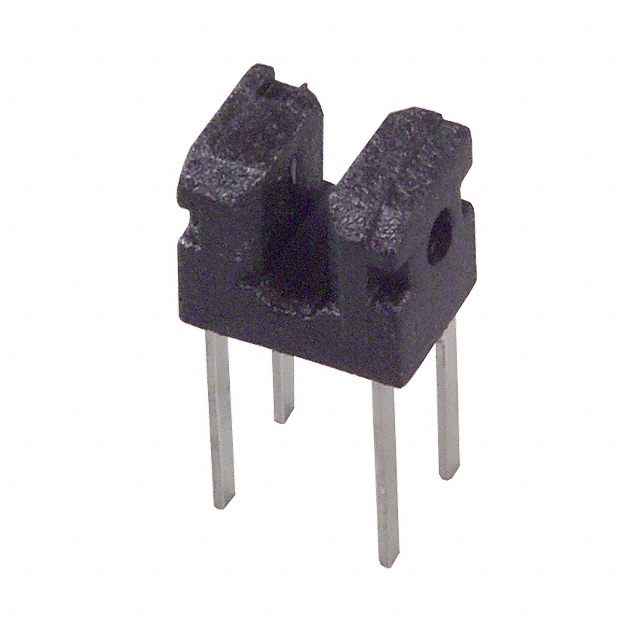

| Description | SENSOR OPTO SLOT 1MM TRANS THRU |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Sensors, Transducers |
|---|
| Series | - |
|---|
| Family | Optical Sensors - Photointerrupters - Slot Type - Transistor Output |
|---|
| PCN Design/Specification |
Internal Emitter Chip 04/May/2007
|
|---|
| Standard Package | 100 |
|---|
| Packaging | Tube |
|---|
| Sensing Distance | 0.039" (1mm) |
|---|
| Sensing Method | Transmissive |
|---|
| Output Configuration | Phototransistor |
|---|
| Current - DC Forward (If) (Max) | 50mA |
|---|
| Current - Collector (Ic) (Max) | 20mA |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 35V |
|---|
| Response Time | 50μs, 50μs |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | PCB Mount |
|---|
| Type | Unamplified |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
| Other Names | 425-1965-5 |
|---|
