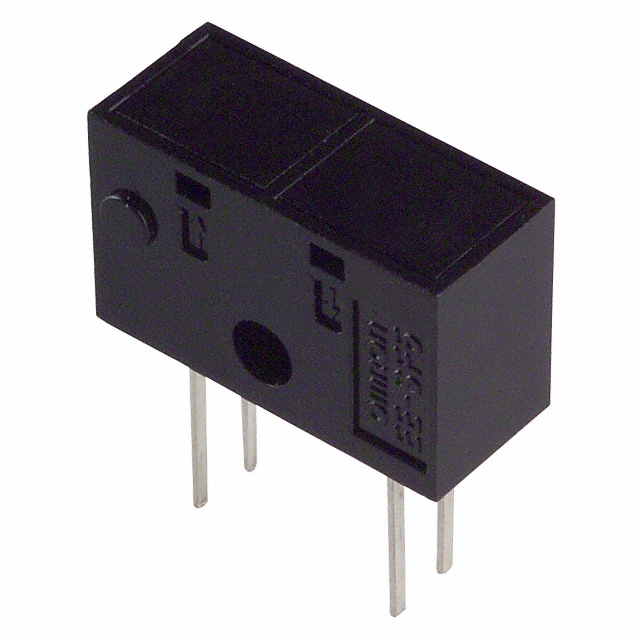

| Part Number | EE-SF5-B |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Description | SENSR OPTO TRANS 5MM REFL TH PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5,061 4,400 - Factory Stock |
| Datasheet | EE-SF5-B |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
EE-SF5-B
-
- USD 7.09
Product Details
| Part Number | EE-SF5-B |
|---|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
| Description | SENSR OPTO TRANS 5MM REFL TH PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Sensors, Transducers |
| Series | - |
| Family | Optical Sensors - Reflective - Analog Output |
| Other Related Documents | How to Read Date Codes |
| Standard Package | 200 |
| Packaging | Bulk |
| Sensing Distance | 0.197" (5mm) |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Current - Collector (Ic) (Max) | 20mA |
| Current - DC Forward (If) (Max) | 50mA |
| Output Type | Phototransistor |
| Response Time | 30μs, 30μs |
| Mounting Type | Through Hole |
| Package / Case | PCB Mount |
| Operating Temperature | -25°C ~ 80°C |
| Online Catalog | EE-SF5 |
| Other Names | EESF5BOR503 |
