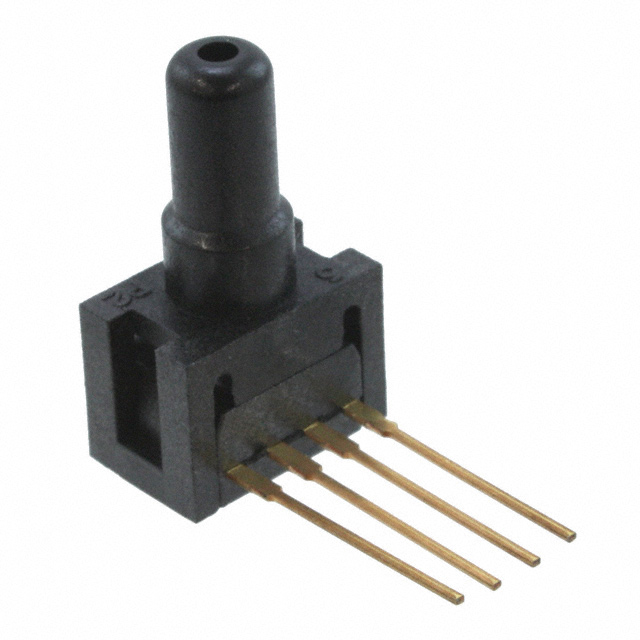

| Part Number | 26PCGFA6G |
|---|
| Manufacturer | Honeywell Sensing and Control |
|---|
| Description | SENSOR VACUUM GAUGE +-250 PSI |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Sensors, Transducers |
|---|
| Series | 26PC |
|---|
| Family | Pressure Sensors, Transducers |
|---|
| PCN Design/Specification |
Conductive Seal 24/May/2011
|
|---|
| Standard Package | 5 |
|---|
| Pressure Type | Compound |
|---|
| Operating Pressure | ±250 PSI (±1723.69 kPa) |
|---|
| Output Type | Wheatstone Bridge |
|---|
| Output | 0 mV ~ 150 mV (10V) |
|---|
| Accuracy | ±0.7% |
|---|
| Voltage - Supply | 2.5 V ~ 16 V |
|---|
| Port Size | Male - 0.2" (5mm) Tube |
|---|
| Port Style | Barbless |
|---|
| Features | Temperature Compensated |
|---|
| Termination Style | PC Pin |
|---|
| Maximum Pressure | ±500 PSI (±3447.38 kPa) |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Package / Case | 4-SIP Module |
|---|
| Supplier Device Package | - |
|---|
| Online Catalog | 26PC Series |
|---|
| Other Names | 26PCGFA6G-ND480-4174 |
|---|
