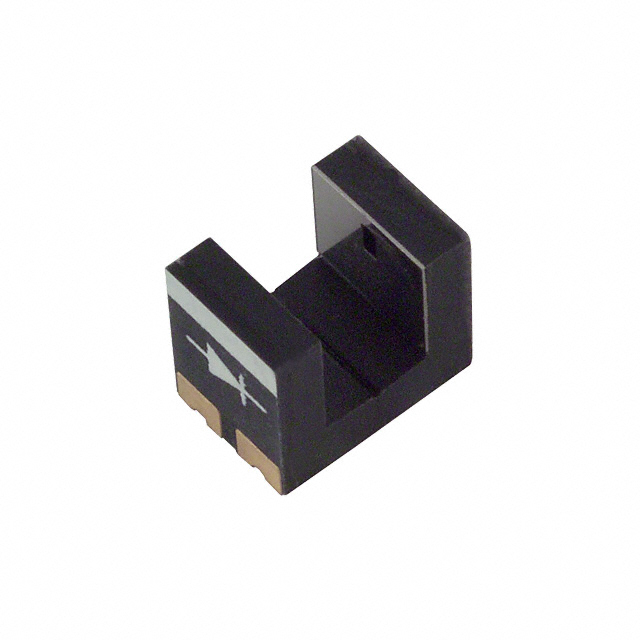

| Part Number | EE-SX1109 |
|---|
| Manufacturer | Omron Electronics Inc-EMC Div |
|---|
| Description | OPTO SENSOR SLOT TYPE 3MM SMT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Sensors, Transducers |
|---|
| Series | - |
|---|
| Family | Optical Sensors - Photointerrupters - Slot Type - Transistor Output |
|---|
| Other Related Documents |
How to Read Date Codes
|
|---|
| Featured Product |
Non-Amplified Photomicrosensors
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Sensing Distance | 0.118" (3mm) |
|---|
| Sensing Method | Transmissive |
|---|
| Output Configuration | Phototransistor |
|---|
| Current - DC Forward (If) (Max) | 25mA |
|---|
| Current - Collector (Ic) (Max) | 20mA |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 20V |
|---|
| Response Time | 10μs, 10μs |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 4-SMD |
|---|
| Type | Unamplified |
|---|
| Operating Temperature | -30°C ~ 85°C |
|---|
| Online Catalog | EE-SX Series |
|---|
| Other Names | EESX1109OR638TR |
|---|
