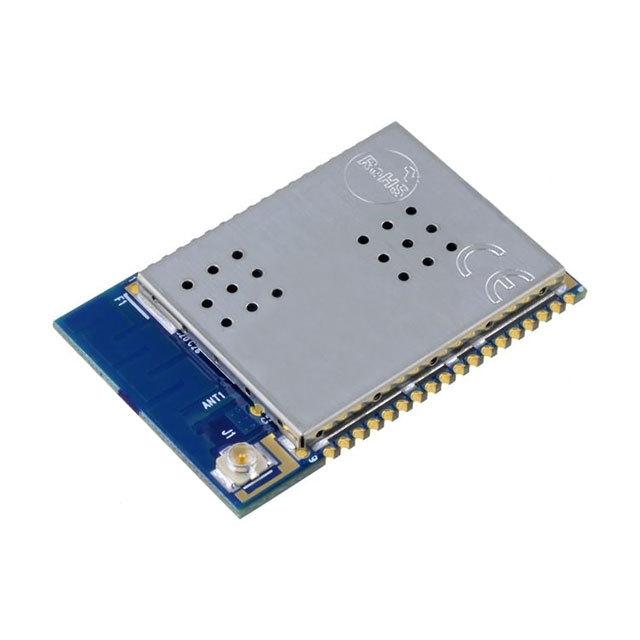

| Part Number | MRF24WG0MB-I/RM |
|---|
| Manufacturer | Microchip Technology |
|---|
| Description | TXRX RF 2.4GHZ EXT ANT 802.11B |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transceiver Modules |
|---|
| Standard Package | 45 |
|---|
| Packaging | Tray |
|---|
| RF Family/Standard | WiFi |
|---|
| Protocol | 802.11b/g |
|---|
| Modulation | DSSS, OFDM |
|---|
| Frequency | 2.4GHz |
|---|
| Data Rate | 54Mbps |
|---|
| Power - Output | 18dBm |
|---|
| Sensitivity | -95dBm |
|---|
| Serial Interfaces | SPI |
|---|
| Antenna Type | Not Included, U.FL |
|---|
| Memory Size | - |
|---|
| Voltage - Supply | 2.8 V ~ 3.6 V |
|---|
| Current - Receiving | 156mA |
|---|
| Current - Transmitting | 226mA ~ 237mA |
|---|
| Mounting Type | Surface Mount |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Package / Case | 36-SMD Module |
|---|
| For Use With |
1286-1101-ND
- CHIPKIT WI-FIRE
1286-1014-ND
- BOARD CHIPKIT WIFI SHIELD
410-273-ND
- CHIPKIT WF32 PIC32MX695F512L
|
|---|
