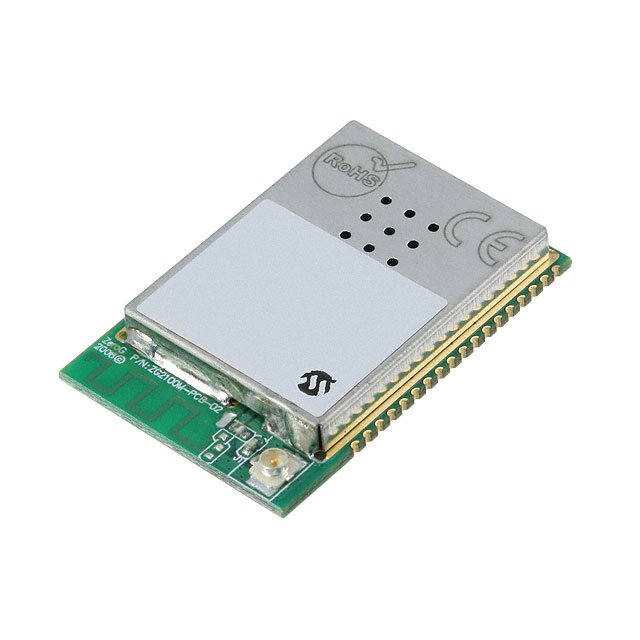

| Part Number | MRF24WB0MB/RM |
|---|
| Manufacturer | Microchip Technology |
|---|
| Description | TXRX RF 2.4GHZ EXT ANT 802.11B |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transceiver Modules |
|---|
| Design Resources |
Development Tool Selector
|
|---|
| Featured Product |
IEEE 802.11 - Wi-Fi? Modules/Development Kit
DV102411 Wi-Fi Comm Demo Board
|
|---|
| PCN Design/Specification |
MRF24WB0MA, MRF24WB0MB Datasheet 22/May/2013
|
|---|
| PCN Packaging |
Label and Packing Changes 23/Sep/2015
|
|---|
| Standard Package | 45 |
|---|
| Packaging | Tray |
|---|
| RF Family/Standard | WiFi |
|---|
| Protocol | 802.11b |
|---|
| Modulation | - |
|---|
| Frequency | 2.4GHz |
|---|
| Data Rate | 2Mbps |
|---|
| Power - Output | 10dBm |
|---|
| Sensitivity | -91dBm |
|---|
| Serial Interfaces | SPI |
|---|
| Antenna Type | Integrated, Trace + U.FL |
|---|
| Memory Size | - |
|---|
| Voltage - Supply | 2.7 V ~ 3.6 V |
|---|
| Current - Receiving | 85mA |
|---|
| Current - Transmitting | 154mA |
|---|
| Mounting Type | Surface Mount |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Package / Case | Module |
|---|
| Online Catalog | MRF24WB0Mx |
|---|
| For Use With | 1286-1014-ND - BOARD CHIPKIT WIFI SHIELD |
|---|
| Other Names | MRF24WB0MBRM |
|---|
