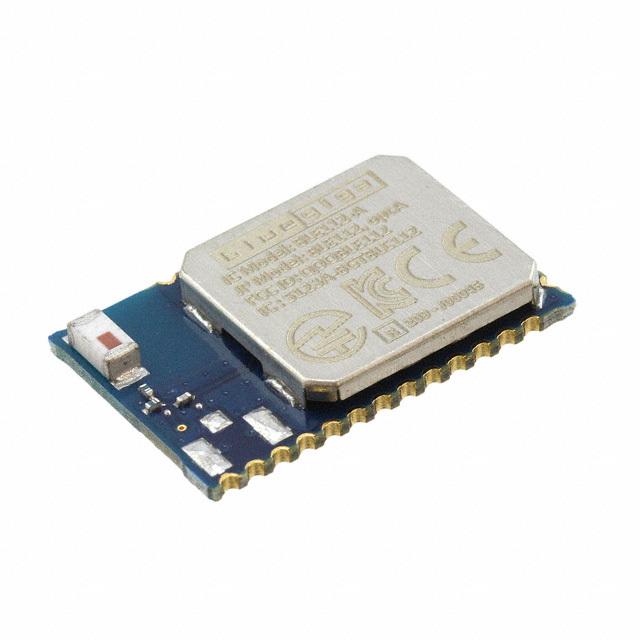

| Part Number | BLE112-A-V1 |
|---|
| Manufacturer | Silicon Labs |
|---|
| Description | CLASS 2 BLTOOTH 4.0 MODULE |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transceiver Modules |
|---|
| Design Resources |
Development Tool Selector
|
|---|
| Featured Product |
Bluegiga Technologies - Bluetooth 4.0 BLE Modules
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| RF Family/Standard | Bluetooth |
|---|
| Protocol | Bluetooth v4.0 Low Energy |
|---|
| Modulation | - |
|---|
| Frequency | 2.4GHz |
|---|
| Data Rate | 2Mbps |
|---|
| Power - Output | 3dBm |
|---|
| Sensitivity | -85dBm |
|---|
| Serial Interfaces | SPI, UART |
|---|
| Antenna Type | Integrated, Chip |
|---|
| Memory Size | 256kB Flash, 8kB SRAM |
|---|
| Voltage - Supply | 2 V ~ 3.6 V |
|---|
| Current - Receiving | 25mA |
|---|
| Current - Transmitting | 36mA |
|---|
| Mounting Type | Surface Mount |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Package / Case | Module |
|---|
| Online Catalog | BLE112-A-V1 Module |
|---|
| For Use With | 1446-1040-ND - DEV KIT BLUETOOTH SMART LR MOD |
|---|
| Other Names | 1446-1017-1 |
|---|
