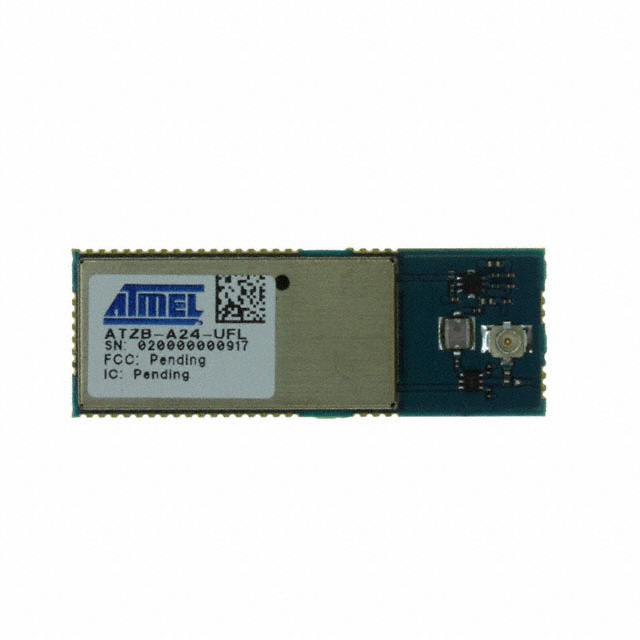

| Part Number | ATZB-A24-UFLR |
|---|
| Manufacturer | Atmel |
|---|
| Description | MOD 802.15.4/ZIGB 2.4GHZ W/U.FL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | ZigBit? |
|---|
| Family | RF Transceiver Modules |
|---|
| Video File |
Introducing Atmel Studio 7
|
|---|
| Design Resources |
Development Tool Selector
|
|---|
| PCN Obsolescence/ EOL |
ZigBit Wireless Modules 26/May/2014
|
|---|
| Packaging | Digi-Reel? |
|---|
| RF Family/Standard | 802.15.4 |
|---|
| Protocol | Zigbee? |
|---|
| Modulation | - |
|---|
| Frequency | 2.4GHz |
|---|
| Data Rate | 250kbps |
|---|
| Power - Output | 20dBm |
|---|
| Sensitivity | -104dBm |
|---|
| Serial Interfaces | I2C, SPI, UART |
|---|
| Antenna Type | Not Included, U.FL |
|---|
| Memory Size | 128kB Flash, 4kB EEPROM, 8kB RAM |
|---|
| Voltage - Supply | 3 V ~ 3.6 V |
|---|
| Current - Receiving | 23mA |
|---|
| Current - Transmitting | 50mA |
|---|
| Mounting Type | Surface Mount |
|---|
| Operating Temperature | -20°C ~ 70°C |
|---|
| Package / Case | PCB Module |
|---|
| Other Names | ATZB-A24-UFLRDKR |
|---|
