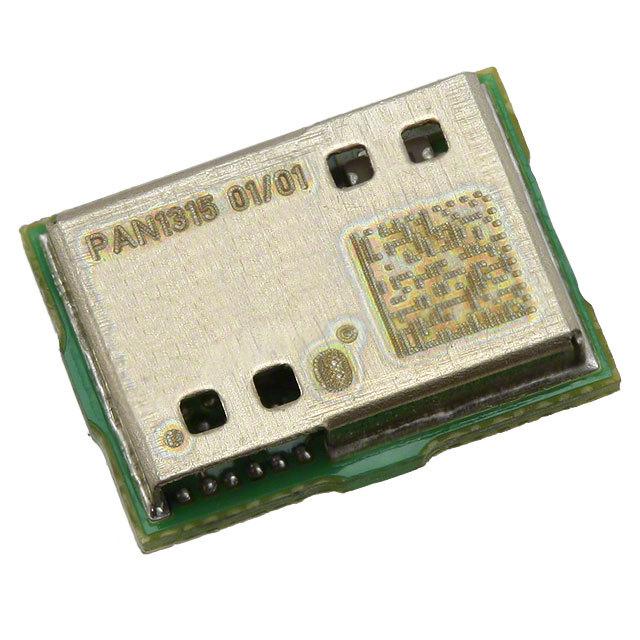

| Part Number | ENW-89818C2JF |
|---|
| Manufacturer | Panasonic Electronic Components |
|---|
| Description | MOD BLUETOOTH HCI NO ANT PAN1315 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transceiver Modules |
|---|
| Design Resources |
Development Tool Selector
|
|---|
| PCN Obsolescence/ EOL |
PAN13x5 Series 24/Oct/2011
PAN13x5 Series Update 09/Aug/2013
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| RF Family/Standard | Bluetooth |
|---|
| Protocol | Bluetooth v2.1 + EDR |
|---|
| Modulation | - |
|---|
| Frequency | 2.4GHz |
|---|
| Data Rate | 2.18Mbps |
|---|
| Power - Output | 10.5dBm |
|---|
| Sensitivity | -93dBm |
|---|
| Serial Interfaces | - |
|---|
| Antenna Type | - |
|---|
| Memory Size | - |
|---|
| Voltage - Supply | 2.2 V ~ 4.8 V |
|---|
| Current - Receiving | - |
|---|
| Current - Transmitting | - |
|---|
| Mounting Type | Surface Mount |
|---|
| Operating Temperature | -20°C ~ 70°C |
|---|
| Package / Case | PCB Module |
|---|
| Other Names | P14264DKR |
|---|
