| Part Number | MC13233C |
|---|
| Manufacturer | Freescale Semiconductor - NXP |
|---|
| Description | IC PLATFORM 802.15.4 48LGA |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transceiver ICs |
|---|
| Design Resources |
Development Tool Selector
|
|---|
| PCN Obsolescence/ EOL |
MC13233C 07/May/2013
|
|---|
| PCN Packaging |
QFN 7x7x1.0mm Tray Change 04/Nov/2013
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Packaging | Tray |
|---|
| Type | TxRx + MCU |
|---|
| RF Family/Standard | 802.15.4, ISM |
|---|
| Protocol | Zigbee? |
|---|
| Modulation | O-QPSK |
|---|
| Frequency | 2.4GHz |
|---|
| Data Rate (Max) | 250kbps |
|---|
| Power - Output | 2dBm |
|---|
| Sensitivity | -94dBm |
|---|
| Memory Size | 82kB Flash, 5kB RAM |
|---|
| Serial Interfaces | I2C, SPI, UART |
|---|
| GPIO | 32 |
|---|
| Voltage - Supply | 1.8 V ~ 3.6 V |
|---|
| Current - Receiving | 34.2mA |
|---|
| Current - Transmitting | 26.6mA |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|

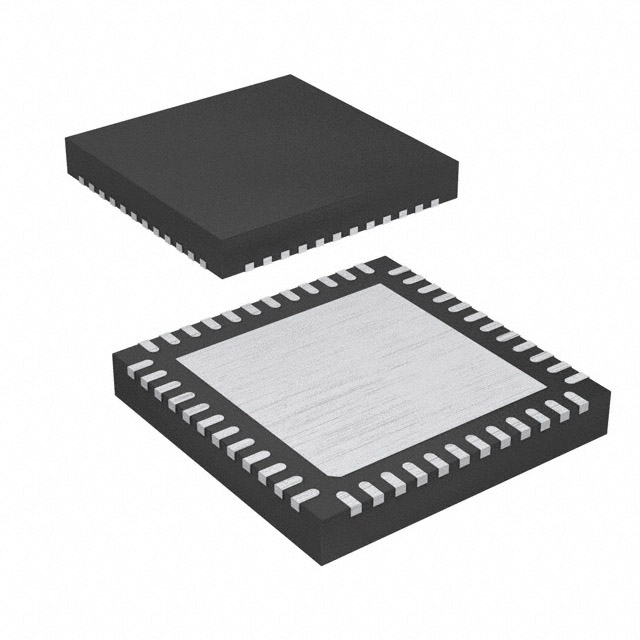

| Package / Case | 48-VFQFN Exposed Pad |
|---|
