| Part Number | CC2531F256RHAR |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC RF ZIGBEE/802.15.4 SOC W/ USB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transceiver ICs |
|---|
| Design Resources |
Development Tool Selector
|
|---|
| PCN Design/Specification |
Cu Wire QFN Packages 25/Apr/2013
|
|---|
| Manufacturer Product Page |
CC2531F256RHAR Specifications
|
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Type | TxRx + MCU |
|---|
| RF Family/Standard | 802.15.4 |
|---|
| Protocol | Zigbee? |
|---|
| Modulation | - |
|---|
| Frequency | 2.4GHz |
|---|
| Data Rate (Max) | 250kbps |
|---|
| Power - Output | 4.5dBm |
|---|
| Sensitivity | -97dBm |
|---|
| Memory Size | 256kB Flash, 8kB RAM |
|---|
| Serial Interfaces | SPI, UART |
|---|
| GPIO | 21 |
|---|
| Voltage - Supply | 2 V ~ 3.6 V |
|---|
| Current - Receiving | 29.6mA |
|---|
| Current - Transmitting | 39.6mA |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|

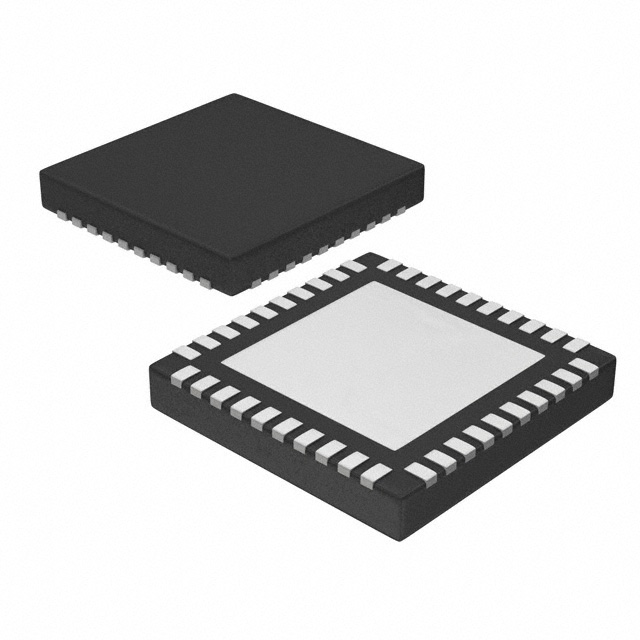

| Package / Case | 40-VFQFN Exposed Pad |
|---|
| Related Products | 644-1250-2-ND - CRYSTAL 32.0000MHZ 10PF SMD |
|---|
| Other Names | 296-43587-2CC2531F256RHAR-ND |
|---|
