| Part Number | CC1101RGP |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC RF VALUE LINE TXRX 20QFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transceiver ICs |
|---|
| Design Resources |
Development Tool Selector
|
|---|
| Reference Design Library |
CC1101EMK433: 433MHz Transceivers
CC1101EMK868-915: 779 ~ 928MHz Transceivers
|
|---|
| PCN Assembly/Origin |
Assembly Site Addition 14/May/2015
|
|---|
| Standard Package | 92 |
|---|
| Packaging | Tube |
|---|
| Type | TxRx Only |
|---|
| RF Family/Standard | General ISM/SRD < 1GHz |
|---|
| Protocol | - |
|---|
| Modulation | 2FSK, 4FSK, ASK, GFSK, MSK, OOK |
|---|
| Frequency | 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz |
|---|
| Data Rate (Max) | 600kbps |
|---|
| Power - Output | 12dBm |
|---|
| Sensitivity | -116dBm |
|---|
| Memory Size | - |
|---|
| Serial Interfaces | SPI |
|---|
| GPIO | - |
|---|
| Voltage - Supply | 1.8 V ~ 3.6 V |
|---|
| Current - Receiving | 17.1mA |
|---|
| Current - Transmitting | 34.2mA |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|

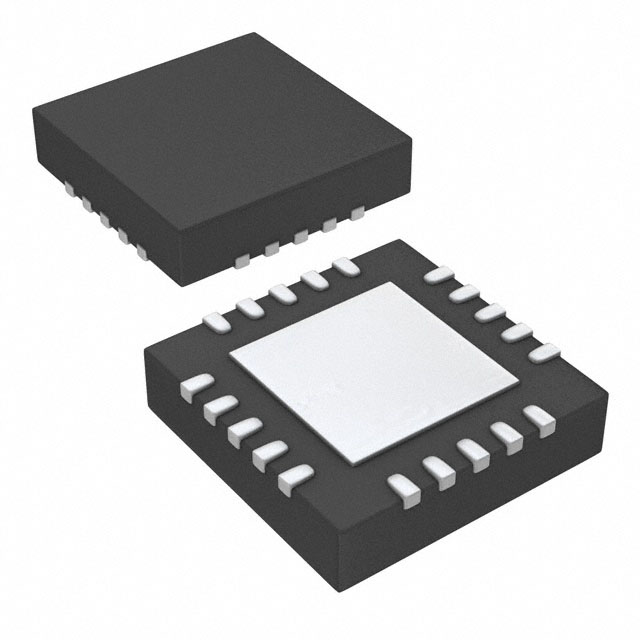

| Package / Case | 20-VFQFN Exposed Pad |
|---|
| Online Catalog | CC1101 |
|---|
| For Use With | 296-42444-ND - EVAL BOARD SMART RF |
|---|
| Other Names | 296-38888-5CC1101RGP-ND |
|---|
