| Part Number | DPX162500DT-8014A1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | DIPLEXER GPS, BLUETOOTH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7,559 |
| Datasheet | DPX162500DT-8014A1 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

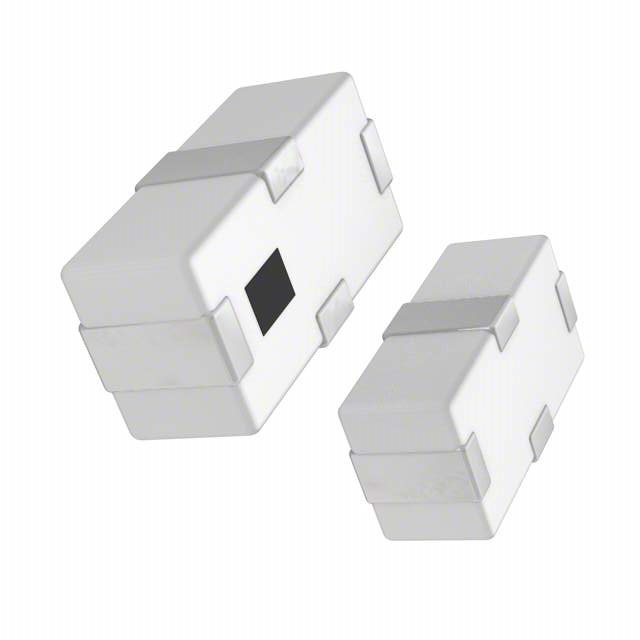

DPX162500DT-8014A1
-
- USD 0.00
Product Details
| Part Number | DPX162500DT-8014A1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | DIPLEXER GPS, BLUETOOTH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | RF/IF and RFID |
| Series | DPX |
| Family | RF Diplexers |
| EDA / CAD Models | Download from Accelerated Designs |
| Standard Package | 1 |
| Packaging | Cut Tape (CT) |
| Frequency Bands (Low / High) | 1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz |
| Low Band Attenuation (min / max dB) | 20.00dB / - |
| High Band Attenuation (min / max dB) | 20.00dB / - |
| Return Loss (Low Band / High Band) | 9.5dB / 9.5dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Online Catalog | Multilayer Diplexers |
| Other Names | 445-9314-1 |
