| Part Number | BC0401PC08-IXB-R |
|---|
| Manufacturer | CSR PLC |
|---|

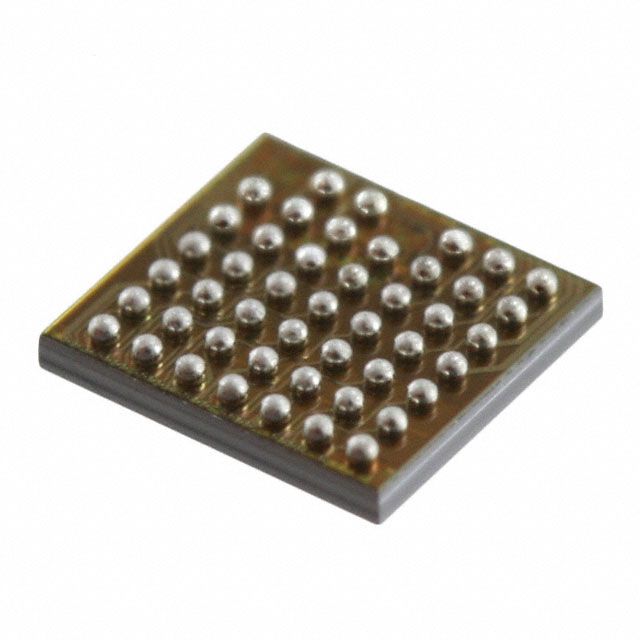

| Description | IC BLUECORE4-PC-ROM 47-WLCSP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | BlueCore? |
|---|
| Family | RF Transceiver ICs |
|---|
| Design Resources |
Development Tool Selector
|
|---|
| PCN Obsolescence/ EOL |
BC0401PC08-IXB-R Device 24/Jun/2014
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Type | TxRx + MCU |
|---|
| RF Family/Standard | Bluetooth |
|---|
| Protocol | Bluetooth v2.1 +EDR, Class 2 and 3 |
|---|
| Modulation | - |
|---|
| Frequency | 2.4GHz |
|---|
| Data Rate (Max) | 3Mbps |
|---|
| Power - Output | 6dBm |
|---|
| Sensitivity | -86dBm |
|---|
| Memory Size | 4MB ROM |
|---|
| Serial Interfaces | - |
|---|
| GPIO | - |
|---|
| Voltage - Supply | 2.2 V ~ 4.2 V |
|---|
| Current - Receiving | - |
|---|
| Current - Transmitting | - |
|---|
| Operating Temperature | -40°C ~ 105°C |
|---|
| Package / Case | 47-WLCSP |
|---|
| Other Names | BC0401PC08-ICXB-RCTBC0401PC08-ICXB-RCT-NDBC0401PC08-IXB-RCT |
|---|
