| Part Number | AD9361BBCZ |
|---|
| Manufacturer | Analog Devices Inc. |
|---|
| Description | IC RF AGILE TXRX 144-BGA |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Transceiver ICs |
|---|
| Mfg Application Notes |
Solution for Wireless Communication Tester
|
|---|
| Video File |
AD9361 RF Transceiver and Support Ecosystem
AD9361 RF Agile Transceiver
|
|---|
| Design Resources |
Development Tool Selector
|
|---|
| Featured Product |
ADI - AD9361 RF Agile Tranceiver IC
1st Quarter Select Products
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Tray |
|---|
| Type | TxRx Only |
|---|
| RF Family/Standard | Cellular |
|---|
| Protocol | - |
|---|
| Modulation | - |
|---|
| Frequency | 70MHz ~ 6GHz |
|---|
| Data Rate (Max) | - |
|---|
| Power - Output | 8dBm |
|---|
| Sensitivity | - |
|---|
| Memory Size | - |
|---|
| Serial Interfaces | SPI |
|---|
| GPIO | - |
|---|
| Voltage - Supply | 1.3V |
|---|
| Current - Receiving | 445mA |
|---|
| Current - Transmitting | 820mA |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|

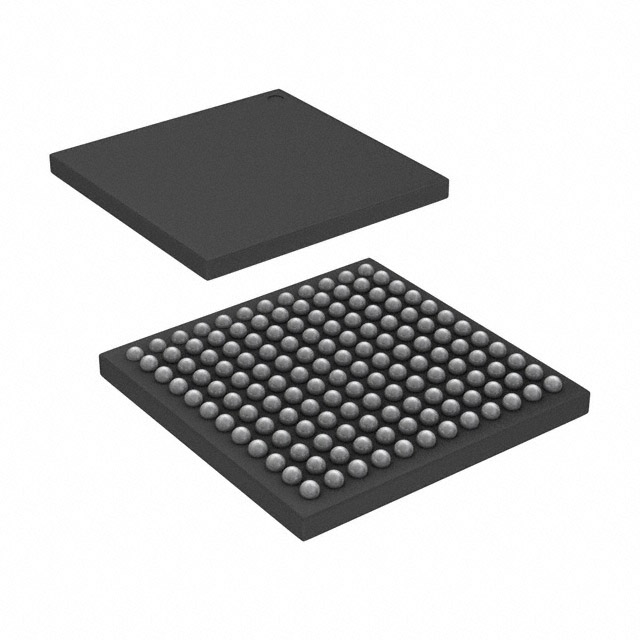

| Package / Case | 144-LFBGA, CSPBGA |
|---|
| Online Catalog | AD9361 |
|---|
| For Use With | AD-FMCOMMS3-EBZ-ND - EVAL BOARD SOFTWARE DEFINE RADIOAD-FMCOMMS2-EBZ-ND - BOARD TRANSCEIVER FOR FMCAD-FMCOMMS5-EBZ-ND - EVAL BOARD SOFTWARE DEFINE RADIOP0204-ND - DAUGHTER CARD HSMC ARRADIO |
|---|
