| Part Number | MAX7042ATJ+T |
|---|
| Manufacturer | Maxim Integrated |
|---|
| Description | IC RECEIVER FSK 32-TQFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Receivers |
|---|
| Other Related Documents |
Automotive Product Guide
|
|---|
| Mfg Application Notes |
Requirements of Remote Keyless Entry (RKE) Systems
Avoid PC-Layout "Gotchas" in ISM-RF Products
Introduction to Hearing Aids and Important Design Considerations
General Layout Guidelines for RF and Mixed-Signal PCBs
Radio Link-Budget Calculations for ISM-RF Products
Design a Crystal Oscillator to Match Your Application
RF Basics
How to Optimize an ISM Radio Frequency (RF) System
Crystal Calculations for ISM-RF Products
Baseband Calculations for ISM-RF Receivers
Squelch in ISM-RF Receivers
Getting Started with a Radio Design
|
|---|
| Product Training Modules |
Lead (SnPb) Finish for COTS
Long-Term Supply Program
|
|---|
| Design Resources |
Development Tool Selector
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Frequency | 308MHz, 315MHz, 418MHz, 433.92MHz |
|---|
| Sensitivity | -110dBm |
|---|
| Data Rate (Max) | 66 kbps |
|---|
| Modulation or Protocol | FSK |
|---|
| Applications | Access Control, AMR, ISM, RKE, TPM |
|---|
| Current - Receiving | 7.2mA |
|---|
| Data Interface | PCB, Surface Mount |
|---|
| Memory Size | - |
|---|
| Antenna Connector | PCB, Surface Mount |
|---|
| Features | - |
|---|
| Voltage - Supply | 2.4 ~ 3.6 V and 4.5 ~ 5.5 V |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|

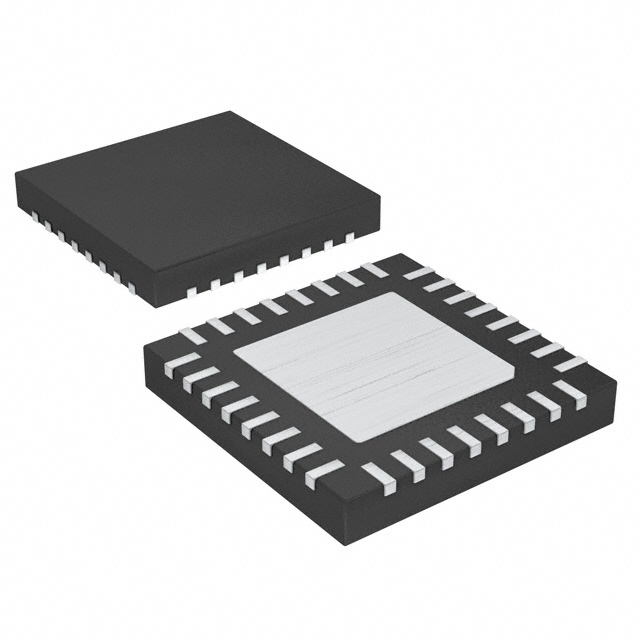

| Package / Case | 32-WFQFN Exposed Pad |
|---|
| Supplier Device Package | 32-TQFN-EP (5x5) |
|---|
