| Part Number | MAX2608EUT-T |
|---|
| Manufacturer | Maxim Integrated |
|---|
| Description | IC VCO IF W/DIFF OUT SOT23-6 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | RF/IF and RFID |
|---|
| Series | - |
|---|
| Family | RF Misc ICs and Modules |
|---|
| Mfg Application Notes |
Trimless IF VCO: Part 2: New ICs Simplify Implementation
Trimless IF VCO: Part 1: Design Considerations
MAX2605/MAX2606/MAX2608/MAX2609 VCO Phase Noise Measurements
Tuning the MAX2607 EV Kit for High Differential Voltage
General Layout Guidelines for RF and Mixed-Signal PCBs
|
|---|
| Design Resources |
4255,4257,42551 EK Schematic
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Function | VCO |
|---|
| Frequency | 300MHz ~ 500MHz |
|---|
| RF Type | Cellular, GPS, ISM |
|---|
| Secondary Attributes | Differential Output |
|---|

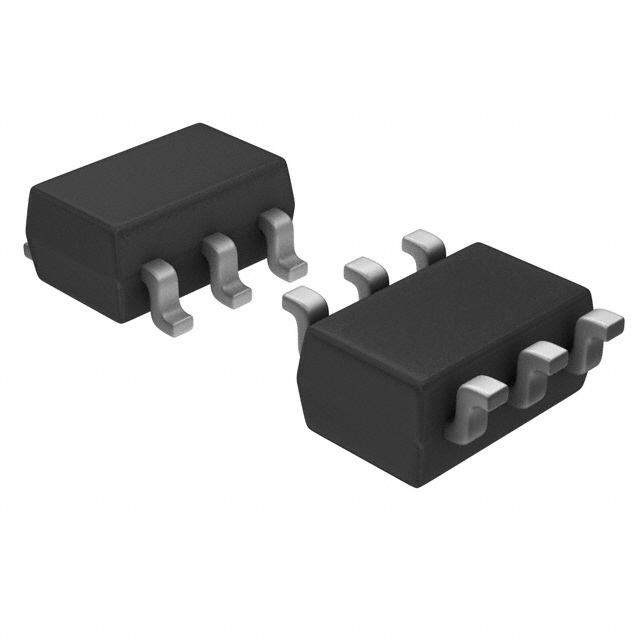

| Package / Case | SOT-23-6 |
|---|
| Supplier Device Package | SOT-23-6 |
|---|
