| Part Number | DPX315950DT-5006C1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | DIPLEXER 2.4/5GHZ W-LAN 1206 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10,000 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

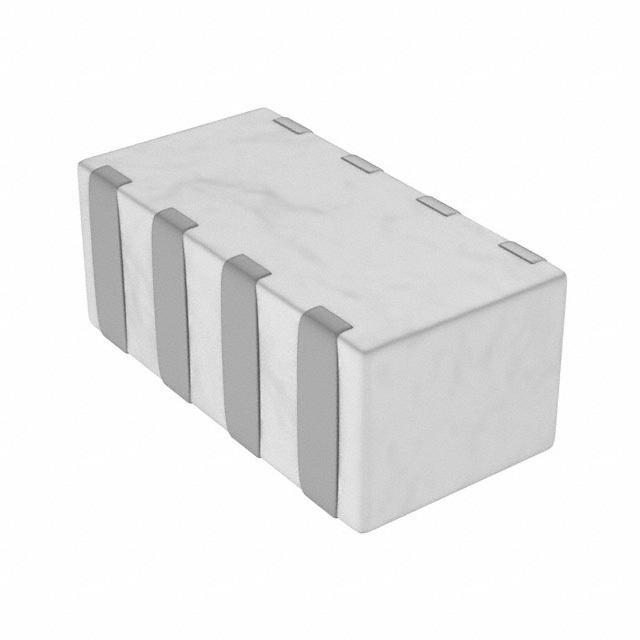

DPX315950DT-5006C1
-
- USD 0.00
Product Details
| Part Number | DPX315950DT-5006C1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | DIPLEXER 2.4/5GHZ W-LAN 1206 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | RF/IF and RFID |
| Series | DPX |
| Family | RF Diplexers |
| EDA / CAD Models | Download from Accelerated Designs |
| Standard Package | 2,000 |
| Packaging | Tape & Reel (TR) |
| Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 5GHz ~ 5.95GHz |
| Low Band Attenuation (min / max dB) | 21.00dB / - |
| High Band Attenuation (min / max dB) | 21.00dB / - |
| Return Loss (Low Band / High Band) | 10dB / 9dB |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Other Names | 445-3262-2 |
