| Part Number | DPX205950DT-9108A1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | DIPLEXER 2.4/5GHZ WLAN 0805 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12,000 |
| Datasheet | DPX205950DT-9108A1 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
DPX205950DT-9108A1
-
- USD 0.00
Product Details
| Part Number | DPX205950DT-9108A1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | DIPLEXER 2.4/5GHZ WLAN 0805 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | RF/IF and RFID |
| Series | DPX |
| Family | RF Diplexers |
| EDA / CAD Models | Download from Accelerated Designs |
| Standard Package | 2,000 |
| Packaging | Tape & Reel (TR) |
| Frequency Bands (Low / High) | 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz |
| Low Band Attenuation (min / max dB) | 20.00dB / - |
| High Band Attenuation (min / max dB) | 20.00dB / - |
| Return Loss (Low Band / High Band) | 20dB / 11dB |
| Mounting Type | Surface Mount |

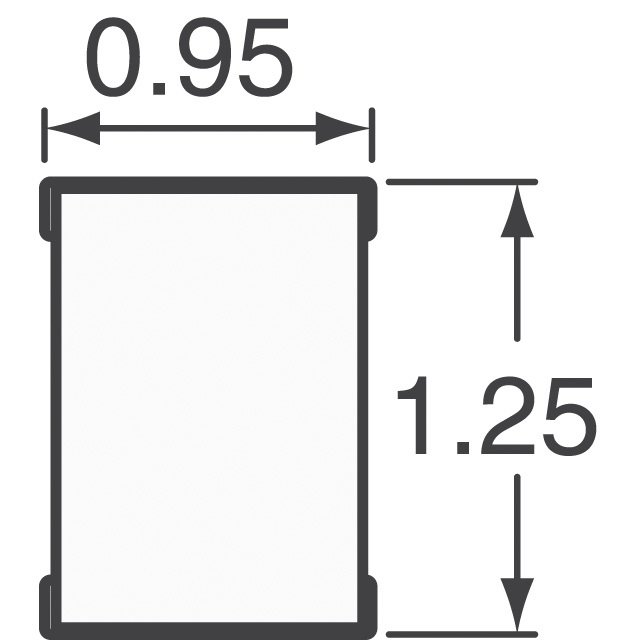

| Package / Case | 0805 (2012 Metric) |
| Online Catalog | Multilayer Diplexers |
| Other Names | 445-6135-2DPX205950DT-9108A1-NDDPX205950DT9108A1 |
