| Part Number | A5839 |
|---|---|
| Manufacturer | Antenova |

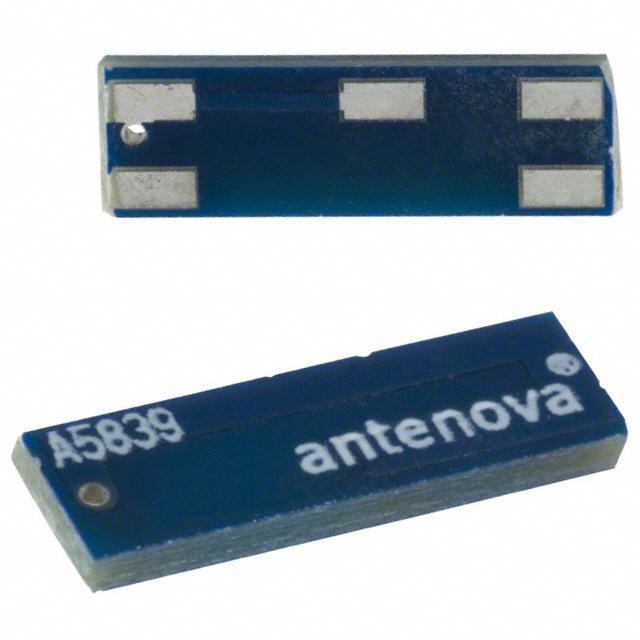

| Description | ANTENNA CHIP 2.4GHZ SMD LEFT FD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11,825 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
A5839
-
- USD 0.00
Product Details
| Part Number | A5839 |
|---|---|
| Manufacturer | Antenova |
| Description | ANTENNA CHIP 2.4GHZ SMD LEFT FD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | RF/IF and RFID |
| Series | Rufa |
| Family | RF Antennas |
| Standard Package | 1 |
| Packaging | * |
| Frequency Group | UHF (2 GHz ~ 3 GHz) |
| Frequency (Center/Band) | 2.4GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 1 |
| VSWR | 1.8 |
| Return Loss | -11dB |
| Gain | 2.1dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.043" (1.10mm) |
| Applications | Bluetooth, WLAN, Zigbee? |
| Online Catalog | Antenova - Embedded |
| Other Names | 627-1011-6 |
