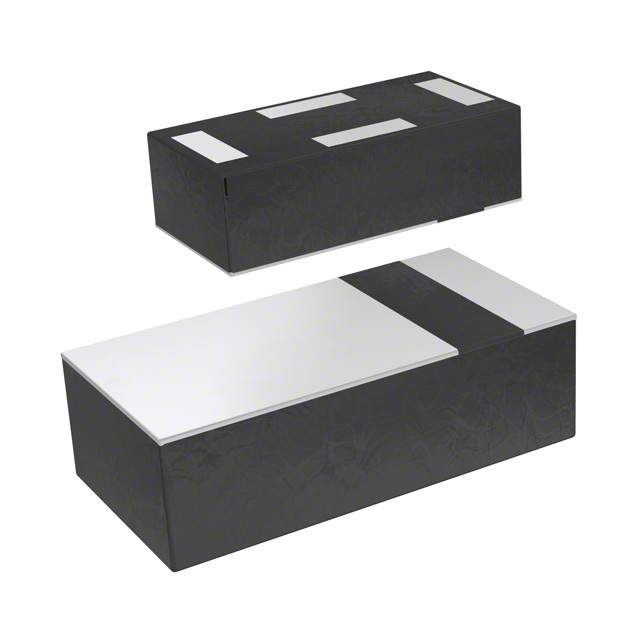

| Part Number | TFSD10055950-5102A2 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | THIN-FILM DIPLEXER 2.4/5GHZ WLAN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9,930 |
| Datasheet | TFSD10055950-5102A2 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
TFSD10055950-5102A2
-
- USD 0.00
Product Details
| Part Number | TFSD10055950-5102A2 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | THIN-FILM DIPLEXER 2.4/5GHZ WLAN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | RF/IF and RFID |
| Series | - |
| Family | RF Diplexers |
| PCN Packaging | TFS Carrier Tape 23/Jun/2014 |
| EDA / CAD Models | Download from Accelerated Designs |
| Standard Package | 1 |
| Packaging | Digi-Reel? |
| Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz |
| Low Band Attenuation (min / max dB) | 20.00dB / 27.00dB |
| High Band Attenuation (min / max dB) | 15.00dB / 31.00dB |
| Return Loss (Low Band / High Band) | 21dB / 23dB |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Online Catalog | Multilayer Diplexers |
| Other Names | 445-15669-6 |
