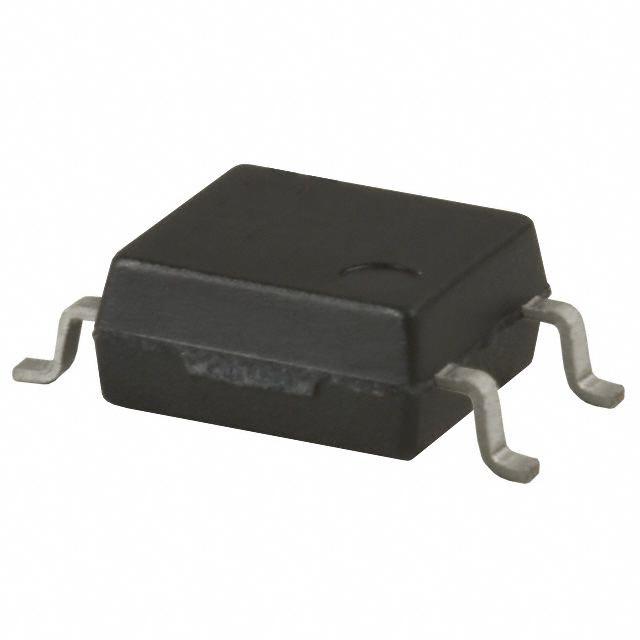

| Part Number | AQY221N2SZ |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | RELAY OPTO 40V 120MA C-TYPE 4SOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | PhotoMOS? AQY |
|---|
| Family | Solid State Relays |
|---|
| Other Related Documents |
AQx REACH Cert of Compliance
How to Read Date Codes
|
|---|
| Mfg Application Notes |
Working with Optically-Isolated Relays
|
|---|
| Product Training Modules |
PhotoMOS Solid State Relays
|
|---|
| Design Resources |
PhotoMOS Schematic & Wiring Diagrams
|
|---|
| Featured Product |
AQY Series Relays
PhotoMOS? Relays
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Circuit | SPST-NO (1 Form A) |
|---|
| Output Type | AC, DC (RF) |
|---|
| On-State Resistance | 12.5 Ohm |
|---|
| Load Current | 120mA |
|---|
| Voltage - Input | 1.14VDC |
|---|
| Voltage - Load | 0 ~ 40 V |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Package / Case | 4-SOP (0.173", 4.40mm) |
|---|
| Supplier Device Package | 4-SOP |
|---|
| Relay Type | Relay |
|---|
| Online Catalog | PhotoMOS? AQY Series |
|---|
| Other Names | 255-2149-2AQY221N2SZ-ND |
|---|
