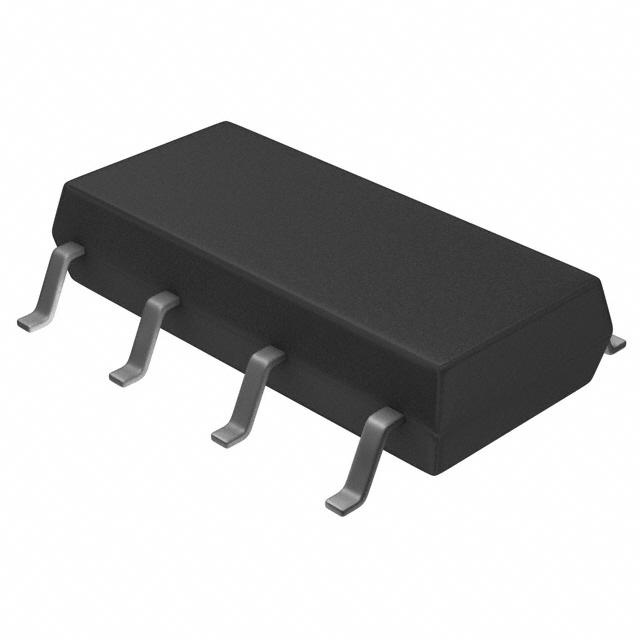

| Part Number | AQW210SZ |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | RELAY OPTO DPST 100MA 8SOP 350V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | PhotoMOS? AQW |
|---|
| Family | Solid State Relays |
|---|
| Other Related Documents |
AQx REACH Cert of Compliance
How to Read Date Codes
|
|---|
| Mfg Application Notes |
Working with Optically-Isolated Relays
|
|---|
| Design Resources |
PhotoMOS Schematic & Wiring Diagrams
|
|---|
| Featured Product |
PhotoMOS? Relays
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Circuit | DPST (2 Form A) |
|---|
| Output Type | AC, DC |
|---|
| On-State Resistance | 35 Ohm |
|---|
| Load Current | 100mA |
|---|
| Voltage - Input | 1.14VDC |
|---|
| Voltage - Load | 0 ~ 350 V |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination Style | Gull Wing |
|---|
| Package / Case | 8-SOP (0.173", 4.40mm) |
|---|
| Supplier Device Package | 8-SOP |
|---|
| Relay Type | Relay |
|---|
| Online Catalog | PhotoMOS? AQW Series |
|---|
| Other Names | 255-3382-1 |
|---|
