| Part Number | CP1A-12V |
|---|
| Manufacturer | Panasonic Electric Works |
|---|

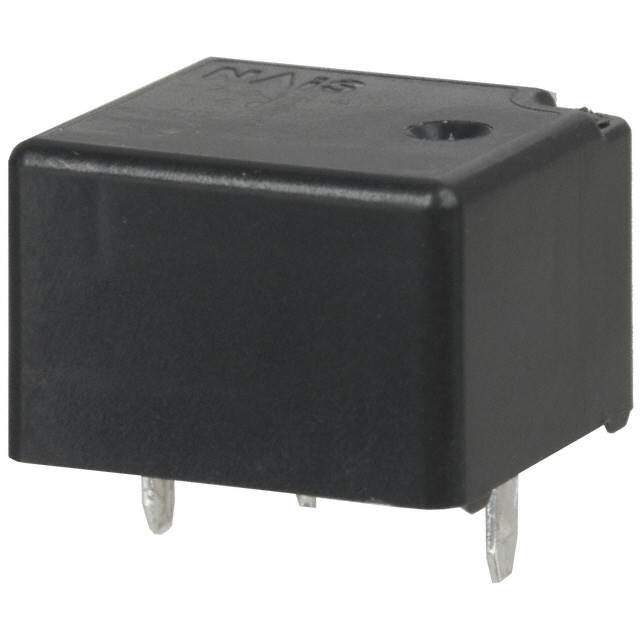

| Description | RELAY AUTOMOTIVE SPST 20A 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | CP |
|---|
| Family | Power Relays, Over 2 Amps |
|---|
| Other Related Documents |
General Appl Guidelines
How to Read Date Codes
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 40 |
|---|
| Packaging | Tube |
|---|
| Relay Type | Automotive |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 53.3mA |
|---|
| Coil Voltage | 12VDC |
|---|
| Contact Form | SPST-NO (1 Form A) |
|---|
| Contact Rating (Current) | 20A |
|---|
| Switching Voltage | 14VDC - Nom |
|---|
| Turn On Voltage (Max) | 7.2 VDC |
|---|
| Turn Off Voltage (Min) | 1 VDC |
|---|
| Operate Time | 10ms |
|---|
| Release Time | 10ms |
|---|
| Features | Sealed - Fully |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | Silver Alloy, Cadmium Free |
|---|
| Coil Power | 640 mW |
|---|
| Coil Resistance | 225 Ohms |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | CP Series |
|---|
| Other Names | 255-1940CP1A-12V-NDCP1A12V |
|---|
