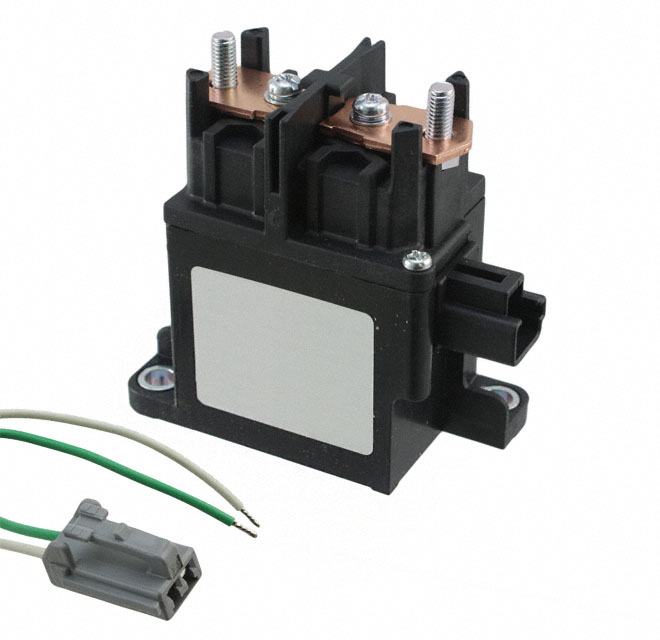

| Part Number | AEV18012W |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | RELAY AUTOMOTIVE SPST 80A 12V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | AEV |
|---|
| Family | Power Relays, Over 2 Amps |
|---|
| Other Related Documents |
General Appl Guidelines
How to Read Date Codes
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Tray |
|---|
| Relay Type | Automotive |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 353mA |
|---|
| Coil Voltage | 12VDC |
|---|
| Contact Form | SPST-NO (1 Form A) |
|---|
| Contact Rating (Current) | 80A |
|---|
| Switching Voltage | 400VDC - Nom |
|---|
| Turn On Voltage (Max) | 9 VDC |
|---|
| Turn Off Voltage (Min) | 1 VDC |
|---|
| Operate Time | 50ms |
|---|
| Release Time | 30ms |
|---|
| Features | - |
|---|
| Mounting Type | Chassis Mount |
|---|
| Termination Style | Stud |
|---|
| Contact Material | - |
|---|
| Coil Power | 4.2 W |
|---|
| Coil Resistance | - |
|---|
| Operating Temperature | -40°C ~ 80°C |
|---|
| Online Catalog | AEV Series |
|---|
| Other Names | 255-2579 |
|---|
