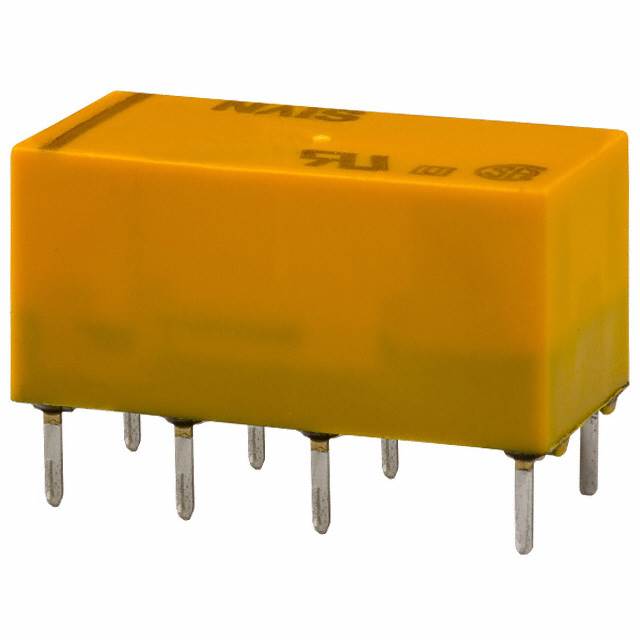

| Part Number | DS2Y-S-DC24V |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | RELAY GEN PURPOSE DPDT 2A 24V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | DS2Y |
|---|
| Family | Signal Relays, Up to 2 Amps |
|---|
| Other Related Documents |
Standards Chart
How to Read Date Codes
|
|---|
| Standard Package | 50 |
|---|
| Packaging | Tube |
|---|
| Relay Type | General Purpose |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 8.3mA |
|---|
| Coil Voltage | 24VDC |
|---|
| Contact Form | DPDT (2 Form C) |
|---|
| Contact Rating (Current) | 2A |
|---|
| Switching Voltage | 250VAC, 220VDC - Max |
|---|
| Turn On Voltage (Max) | 16.8 VDC |
|---|
| Turn Off Voltage (Min) | 2.4 VDC |
|---|
| Operate Time | 4ms |
|---|
| Release Time | 3ms |
|---|
| Features | - |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | Silver (Ag), Gold (Au) |
|---|
| Coil Power | 200 mW |
|---|
| Coil Resistance | 2.88 kOhms |
|---|
| Operating Temperature | -40°C ~ 70°C |
|---|
| Online Catalog | DS2Y Series |
|---|
| Other Names | 255-1080DS2YSDC24V |
|---|
