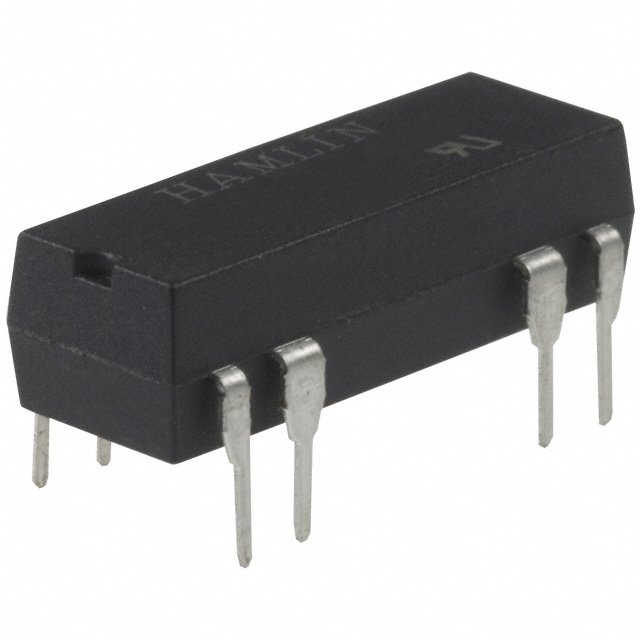

| Part Number | HE721A0510 |
|---|
| Manufacturer | Littelfuse Inc. |
|---|
| Description | RELAY REED SPST 500MA 5V |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Relays |
|---|
| Series | HE700 |
|---|
| Family | Signal Relays, Up to 2 Amps |
|---|
| Other Related Documents |
Handling Of Reed Sensors, Relays, Switches App Note
|
|---|
| Standard Package | 25 |
|---|
| Packaging | Tube |
|---|
| Relay Type | Reed |
|---|
| Coil Type | Non Latching |
|---|
| Coil Current | 10mA |
|---|
| Coil Voltage | 5VDC |
|---|
| Contact Form | SPST-NO (1 Form A) |
|---|
| Contact Rating (Current) | 500mA |
|---|
| Switching Voltage | 200VDC - Max |
|---|
| Turn On Voltage (Max) | 3.75 VDC |
|---|
| Turn Off Voltage (Min) | 0.5 VDC |
|---|
| Operate Time | 1ms |
|---|
| Release Time | 1ms |
|---|
| Features | Diode |
|---|
| Mounting Type | Through Hole |
|---|
| Termination Style | PC Pin |
|---|
| Contact Material | - |
|---|
| Coil Power | - |
|---|
| Coil Resistance | 500 Ohms |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | HE700 Series |
|---|
| Other Names | HE101 |
|---|
